Dark blue Hexatronic Stingray air blown fiber and dark blue cardboard box with Stingray logotype

KRPM258+MMAH

High Performance Air Blown Fiber – Multimode

ABF 2-12 fibers OM3, OM4 S12 - Box

  • Extra strong and durable design
  • Smooth, low-friction sheath
  • 2, 4, 6, 8 or 12 fiber, Multimode OM3 and OM4 bend resistant fibers
  • Extra wide operational temperature range
  • Water and Ice tested
  • State of the art blowing performance
  • Zero sheath shrinkage
  • Extra strong and durable design
  • Smooth, low-friction sheath
  • 2, 4, 6, 8 or 12 fiber, Multimode OM3 and OM4 bend resistant fibers
  • Extra wide operational temperature range
  • Water and Ice tested
  • State of the art blowing performance
  • Zero sheath shrinkage
Talk to an expert

Hexatronic Stingray is a high performance Air Blown Fiber Unit intended for blowing into microducts. The main application area is for fiber access networks such as Fiber To The Home (FTTH), campus networks and data centers.

The Hexatronic Stingray Air Blown Fiber is designed with durability and performance in mind. The unique design offers a combination of properties previously not available on the market. A sturdy fiber unit with state of the art fiber blowing performance increases the installation success rate and provides quick and problem free installation. The Stingray has a unique sheath material with zero sheath shrinkage ,wich means no fragile splice points or sensitive installations in wall outlets or fiber cabinets.

The Air Blown Fiber unit is colored dark blue for good visibility when installed in semi-translucent microducts.

The Air Blown Fiber is delivered in bulk lengths in cardboard PANs. For optimum blowing performance, use the Hexatronic Air Blown Tool LTT 179 2040.

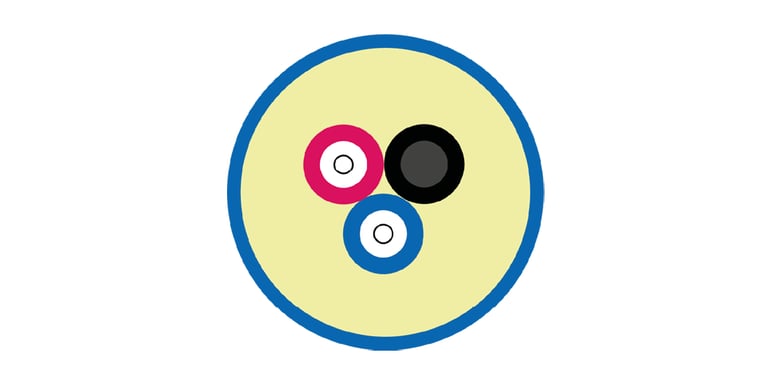

High Performance Air Blown Fiber - Multimode - Technical Details
  1. Primary coated fiber: Silica, acrylate
  2. Primary coating: UV-cured acrylate
  3. Sheath: Low friction polyolefin

A mechanical filler is used in the 2-fiber unit as well as in the center of the 6-fiber unit.

Technical Information

Product Color Dark blue
Color Code S12
Temperature, Operation [°C] –25 to +70
Temperature, Storage [°C] –45 to +70
Temperature, Installation [°C] –15 to +60
Fiber Type OM3;OM4
Attenuation @Wavelength [nm] 850/1310
Maximum Attenuation [dB/km] 3.0/1.0
Conformance Air blown fiber: IEC 60794-5-20
Installation Notes

Typical installation performance:

  • Ducts ID 3.5-4 mm: 1000 m

Installation performance is affected by the installed path, environmental conditions, installation equipment etc and actual performance may therefore deviate from the above specified values.
Ordering Information

Supplied lengths: 1000, 2000, 4000, 6000 m

Delivered in cardboard boxes

Technical image # 1
