TOL4032008+A

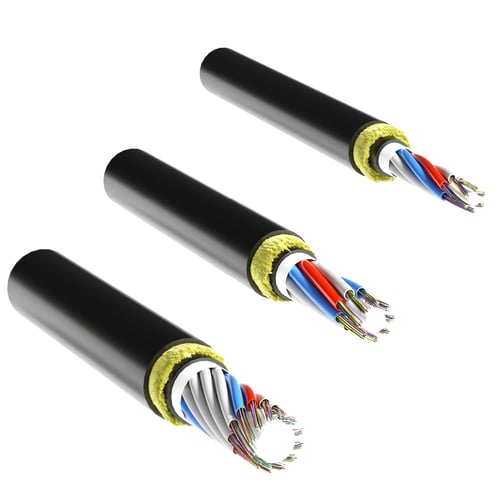

ADSS Loose Tube Aerial Cable
GRHLGL 12-144 fibers G652D StdE 14.5-18.0 kN
- Concentric core design
- 24-144 fibers
- Max span length 200-500 m
- Self-supporting
- Non-metallic
1. Primary coated fiber: Silica, acrylate
2. Filling compound: Thixotropic gel
3. Loose tube: PBT
4. Central strength member: Glass fiber reinforced plastic
5. Water blocking: Swellable tape/yarns
6. Sheath: Polyethylene (black)
7. Strength member: Aramid yarns
8. Sheath: Polyethylene (black)
Temperature, Operation [°C]
-40 to +70
Temperature, Handling [°C]
-15 to +50
Temperature, Storage [°C]
-40 to +70
Fiber Type
G652D
Attenuation @Wavelength [nm]
1310/1550/1625
Attenuation Max
0.36/0.23/0.25
Color
Black Sheath
Conformance
Longitudinal water blocking according to IEC 60794-1-2-F5B.
Mechanical and environmental tests in accordance with IEC 60794-1.
Fiber parameters and tests according to the IEC series 60793-2 and 60793-1.
Color code
STDE
Water Blocking
Longitudinal water blocking according to IEC 60794-1-2-F5B
Marking
Example of jacket marking, 1 time/meter:
“HEXATRONIC A35 yymmddhh TOL4032008/96A GRHLGL-L-CDFNRV 96/T12 G652D STD xxxxx m"
where yymmddhh = year, month, day and hour of manufacture, xxxxx=running meter marking.
Installation Notes
The cable can be installed adjacent to power lines up to 120 kV.
Ordering Info
Supplied lengths: 2, 4, 6 or 8 km
Technical Information
StdE Color Code Chart
Sort by
Item name
Add to list
More
- Product: GRHLGL 24/T4 G652D STD (ID: TOL4032008/24A) | Color: Black | No. of Fibers: 24 | Layout: 6x4 | Bend Radius [mm]: 230 | Tensile Force, Installation [N]: 14500 | Tensile Force, Operation [N]: 14500 | Crush [N/100 mm]: 2500 | Diameter: 15.1 | Weight [kg/km]: 170 | Length [m]: 6000/K22
- Product: GRHLGL 48/T8 G652D STD (ID: TOL4032008/48A) | Color: Black | No. of Fibers: 48 | Layout: 6x8 | Bend Radius [mm]: 230 | Tensile Force, Installation [N]: 14500 | Tensile Force, Operation [N]: 14500 | Crush [N/100 mm]: 2500 | Diameter: 15.1 | Weight [kg/km]: 170 | Length [m]: 2000/K12, 6000/K22, 4000/K16
- Product: GRHSLLDV 72 G652, 14,5kN-16,5 mm (ID: TOL4032008/72A) | Color: Black | No. of Fibers: 72 | Layout: 6x12 | Bend Radius [mm]: 250 | Tensile Force, Operation [N]: 15000 | Crush [N/100 mm]: 2500 | Diameter: 16.5 | Weight [kg/km]: 210 | Length [m]: 4000/K20
- Product: GRHLGL 96/T12 G652D STD (ID: TOL4032008/96A) | Color: Black | No. of Fibers: 96 | Layout: 8x12 | Bend Radius [mm]: 290 | Tensile Force, Installation [N]: 16000 | Tensile Force, Operation [N]: 16000 | Crush [N/100 mm]: 2500 | Diameter: 18.9 | Weight [kg/km]: 250 | Length [m]: 8000/K24, 6000/
- Product: GRHLGL 144/T12 G652D STD (ID: TOL4032008/144A) | Color: Black | No. of Fibers: 144 | Layout: 12x12 | Bend Radius [mm]: 350 | Tensile Force, Installation [N]: 18000 | Tensile Force, Operation [N]: 18000 | Crush [N/100 mm]: 2500 | Diameter: 23.0 | Weight [kg/km]: 370 | Length [m]: 7300/K26, 4000/K24
