MPB30217+

Underwater Microduct 12/10-20/16 mm

UWD 12/10-20/16 mm 1-3 -way

  • For underwater installation
  • Water depth down to 50 m
  • Compact design, down to 22.5 mm in diameter
  • Microduct OD/ID: 12/10 mm or 20/16 mm options
  • Steel wire reinforcement - Water blocking Al-foil
  • For underwater installation
  • Water depth down to 50 m
  • Compact design, down to 22.5 mm in diameter
  • Microduct OD/ID: 12/10 mm or 20/16 mm options
  • Steel wire reinforcement - Water blocking Al-foil

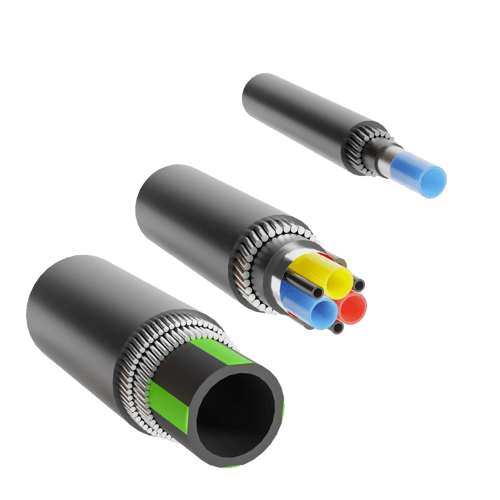

Three different versions of single armored underwater microducts with black sheath

The underwater microduct is a single armored duct for shallow submarine installations. It is designed to be used with micro casbles and can easily be connected to land based microducts with microduct connectors or adapters. The microduct is suitable for lakes and river crossings in all types of fiber access networks.

This underwater microduct is based on a 12/10 or 20/16 mm PE microduct protected by an aluminum foil and a polyethylene sheath. Outside the sheath there is a layer of galvanized steel wires covered with a heavy-duty layer of HDPE polymer. The steel wire reinforcement provides reliable mechanical protection, enabling installation and operation during rough conditions.

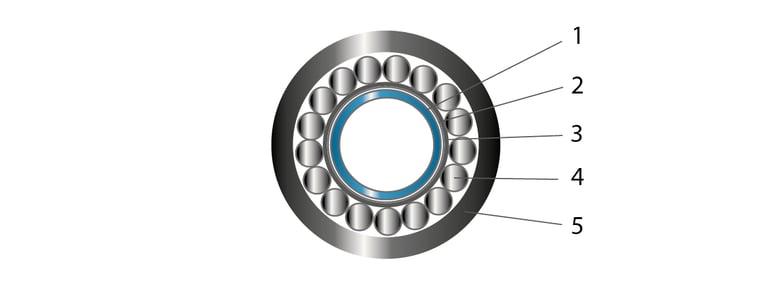

Underwater Microduct 12/10-20/16 mm - Technical Details
  1. Microduct: Polyethylene
  2. Wrapping: Plastic Al-foil
  3. Sheath: Polyethylene, black
  4. Armoring: Galvanized steel wires
  5. Sheath: Polyethylene, black

Technical Information

Temperature, Operation [°C] -30 to +60
Temperature, Storage [°C] -40 to +70
Temperature, Installation [°C] -15 to +40
Technical Notes

Tensile force 12/10 -

Permanent: 10 kN

During installation:15 kN

Tensile force 20/16 -

Permanent: 20 kN

During installation: 30 kN

Ordering Information Max continuous length: 2 km
