TOL4016101+C

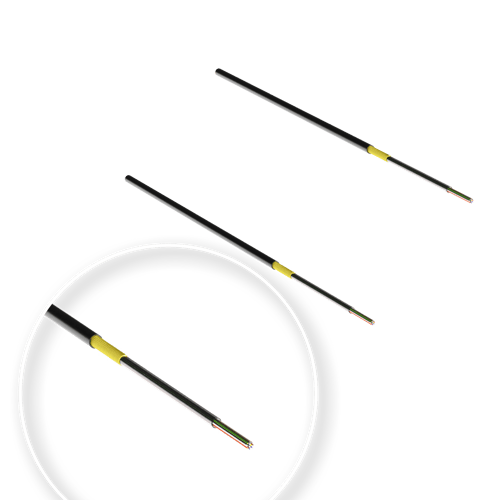

Unitube Drop Cable

GPGL 2-12 fibers G657A1 TIA598

Slim design for installation into microducts down to 3.5 mm inner diameter
Installation by blowing or pulling
Extra strong and durable, with integrated aramide strength member
Smooth, low-friction sheath
Excellent installation performance
Halogen-free

Slim design for installation into microducts down to 3.5 mm inner diameter
Installation by blowing or pulling
Extra strong and durable, with integrated aramide strength member
Smooth, low-friction sheath
Excellent installation performance
Halogen-free

The unitube drop cable is a high performance Air Blown Cable that will minimize initial investment and at the same time provide a future proof network that is easy to expand, upgrade and maintain. The main application areas are for fiber access networks such as Fiber To The Home (FTTH) and Fiber To The Antenna (FTTA). The cable is intended for installation in microducts with an inner diameter from 3.5mm up to 12mm.

The unitube cable has a design that enables the cable to be blown or pulled through microducts. The cable is based on a unitube design surronded with aramide yarns as strength member. With the integrated strength member, the cable is ideal for both blowing and pulling. The strength member also adds increased stability and robustness to the cable. The cable is available with single mode bend resistant G657A1.

Primary coated fiber: Silica, acrylate
Loose tube
Filler: Thixotropic gel
Strength member: Aramide yarns
Sheath: Polyethylene (black)

Technical Information

Product Color	Black Sheath
Color Code	TIA598
Temperature, Operation [°C]	-40 to +70
Temperature, Storage [°C]	-40 to +70
Temperature, Installation [°C]	-15 to +60
Fiber Type	G657A1
Attenuation @Wavelength [nm]	1310/1550
Average Attenuation [dB/km]	0.33/0.21
Maximum Attenuation [dB/km]	0.38/0.25
Conformance	Fiber parameters and tests according to the IEC series 60793-2 and 60793-1.
Marking	Example of sheath marking: HEXATRONIC A35 yymmddhh TOL4016101/8C GPGL-U-DGV 8/T8 G657A1 TIA598 + meter marking
Installation Notes	The cable is intended for installation in microducts with an inner diameter from 3.5mm up to 12mm. The cable should be installed at a temperature between -15 to +40°C. The cable shall not be stored in direct sunlight. The sun may heat up the cable over the permitted temperature limit.
