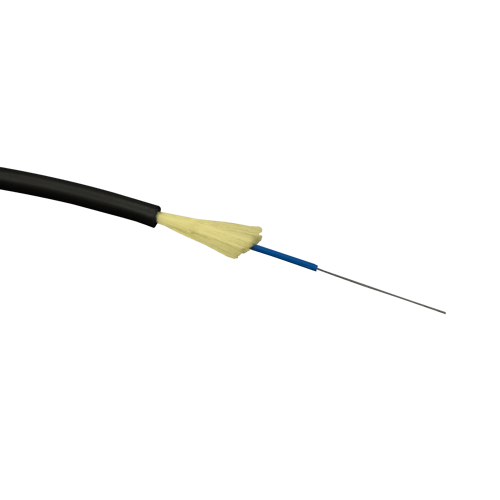

FCAT-CxX-SM

FTTx External Subscriber Cable

Suited for use in Aerial and MDU Deployments

Up to 4 Fibres
Lightweight Self Supporting Tight Buffered Design
For Aerial or Duct Installation
ITU-T G.657A2 Bend Insensitive Fibre
Dry Design with Water Blocking Aramid
Non-Metallic Cable (ADSS)
UV Stabilized Jacket

Up to 4 Fibres
Lightweight Self Supporting Tight Buffered Design
For Aerial or Duct Installation
ITU-T G.657A2 Bend Insensitive Fibre
Dry Design with Water Blocking Aramid
Non-Metallic Cable (ADSS)
UV Stabilized Jacket

FTTH Deployments
Overhead Aerial Deployment
MDU External Cabling

The Hexatronic FTTx Aerial Drop cable is equally suited for use in Aerial distribution applications and also MDU Deployments. Its High strength abrasion resistant Jacket is ideal for harsh environments. With an outer diameter of just 3mm and lightweight, it allows for effective cable management around buildings and in Distribution Nodes.

The cable shall only be installed using approved suspension clamps.

Recommended maximum span length for PIA applications is 68m, taking into account wind loads and 5mm ice coverage, but up to 80m is possible for special cases

Technical Information

Product Color	Black or Brown
Insertion Loss, max [dB]	0.25 dB max
Return Loss, min [dB]	UPC >55 dB, APC >65 dB
Installation Notes	The cable shall only be installed using approved suspension clamps. Recommended maximum span length for PIA applications is 68m, taking into account wind loads and 5mm ice coverage, but up to 80m is possible for special cases 1) General installation length: 15m to 150m 2) General Span length for Aerial Drop: 15m to 80m
