TOL4069013+C

Duct and Direct Buried Drop Cable

1-12 fibers G657A1 TIA598

  • Excellent installation performance
  • Easy to strip and identify fibers
  • Very good temperature performance
  • 1-12, G657.A1 bend resistant fibers
  • Diameter 6.1x3.3 mm
  • Robust and flexible design
  • Halogen free sheath
  • Excellent installation performance
  • Easy to strip and identify fibers
  • Very good temperature performance
  • 1-12, G657.A1 bend resistant fibers
  • Diameter 6.1x3.3 mm
  • Robust and flexible design
  • Halogen free sheath

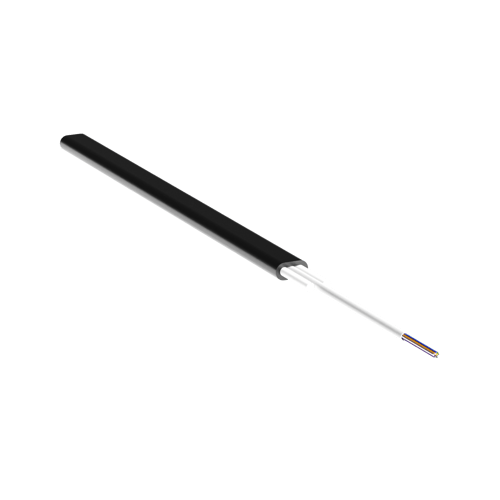

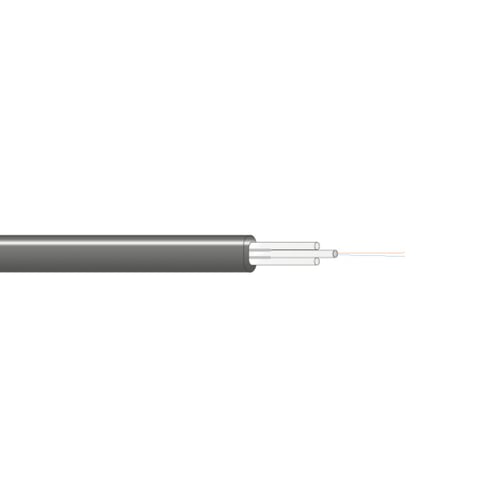

Fiber optic drop cable with black sheath

The cable is a fiber optic drop cable designed for low-cost subscriber connections such as fiber-to-the-home (FTTH) or fiber-to-the-building (FTTB) networks, bridging the space between the distribution network and the subscriber premises. The drop cable can be installed in ducts or be direct buried.

The drop cable, based on the well proven loose tube technology, consists of one loose tube with 1 to12 fibers. Two FRP rods (Fiber reinforced plastics) guarantee highest tensile performance. The sheath gives the cable good protection against all outdoor environments.

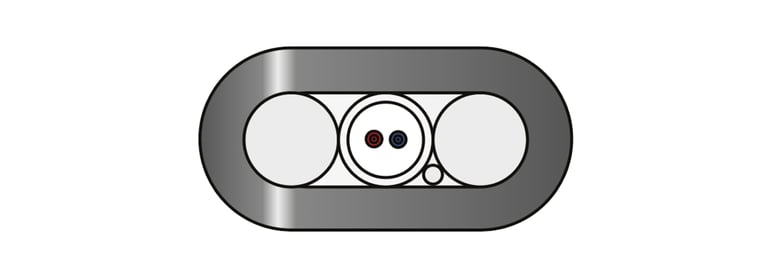

Duct and Direct Buried Drop Cable - Technical Details
  1. Primary coated fiber: Silica, acrylate
  2. Filling compound: Thixotropic grease
  3. Loose tube: PA
  4. Slit up yarn
  5. Central strength member: Glass fiber reinforced plastic, water swellable
  6. Sheath: Polyethylene, halogen-free

Technical Information

Product Color Black Sheath
Color Code TIA598
Temperature, Operation [°C] -40 to +70
Temperature, Storage [°C] -40 to +70
Temperature, Installation [°C] -15 to +60
Water Blocking Longitudinal water blocking according to IEC 60794-1-2-F5B
Fiber Type G657A1
Attenuation @Wavelength [nm] 1310/1550/1625
Average Attenuation [dB/km] 0.36/0.22/0.25
Maximum Attenuation [dB/km] 0.38/0.25/0.30
Conformance Longitudinal water blocking according to IEC 60794-1-2-F5B. Mechanical and environmental tests in accordance with IEC 60794-1-2. Fiber parameters and tests according to the IEC series 60793-2 and 60793-1.
Marking Example of sheath marking, 1 time/meter: “HEXATRONIC A35 yymmddhh GNGLDV 2 G.657.A1 TOL4069013/2C xxxxx m” where yymmddhh = year, month, day and hour of manufacture, xxxxx=running meter marking.
Ordering Information Supplied lengths: 1, 2, 4, 6 km

Technical image # 1
TIA 598 Color Code Chart
