TOL4036011+

Ultra-Lightweight Aerial Cable

ULW 4-48 fibers G657A1 TIA598

  • Up to 48 fibers
  • Super lightweight and durable design based on unique miniature loose tubes
  • For aerial or duct installations
  • Bend resistant G657A1 fibres
  • Dry design with longitudinal water tightness
  • Suitable for use with a minimum vertical separating distance of 1.8m from 11kv - Controlled tensile breaking force for maximum security, less than 2000N
  • 7mm cable diameter
  • Up to 48 fibers
  • Super lightweight and durable design based on unique miniature loose tubes
  • For aerial or duct installations
  • Bend resistant G657A1 fibres
  • Dry design with longitudinal water tightness
  • Suitable for use with a minimum vertical separating distance of 1.8m from 11kv - Controlled tensile breaking force for maximum security, less than 2000N
  • 7mm cable diameter

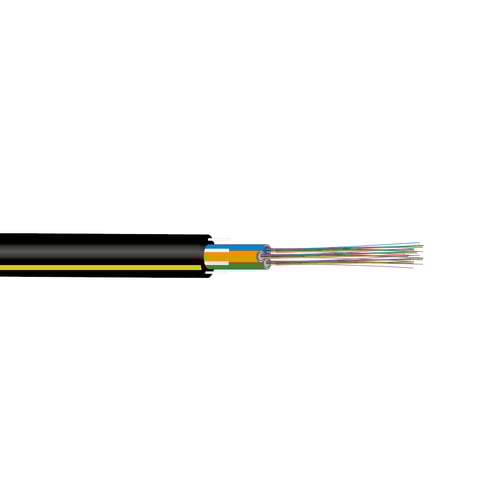

One ultra-lightweight aerial cable with black sheath and yellow stripes

The Hexatronic Ultra-lightweight cable range is designed for aerial installations for fibre access networks. As a secondary application the cables can also be installed underground in ducts. The cables are designed to fulfil all requirements to be installed in the British Telecom overhead and underground environments.

The cables are of a loose tube design with bend resistant G657A1 fibres organised in 4, 8 or 12 fibre miniature loose tubes depending on cable fibre count. This design gives an excellent bend performance and an extremely wide operational temperature range. The unique miniature loose tubes also provide superior cable preparation and handling properties both for termination and midspan access scenarios. Water swellable elements are used to make the cable design longitudinally watertight. Two 3x0.32 mm brass coated steel wires are used as strength members. The design makes it possible to control the breaking force of the cable so that the cable will break only when a certain load is reached.

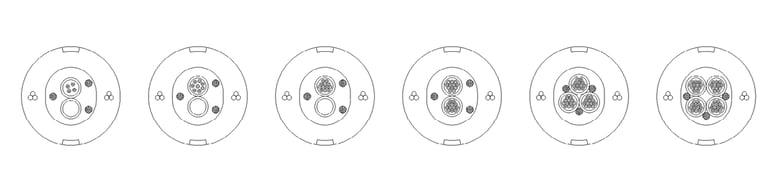

Ultra-Lightweight Aerial Cable - Technical Details
  1. Primary coated fiber: Silica, acrylate
  2. Loose tube, jelly filled: PA
  3. Strength member: Brass coated steel wires
  4. Water blocking element: Water blocking yarns
  5. Sheath: Polyethylene

Technical Information

Product Color Black sheath with yellow stripes
Color Code TIA598
Temperature, Operation [°C] -20 to +60
Temperature, Storage [°C] -30 to +70
Temperature, Installation [°C] -15 to +50
Fiber Type G657A1
Attenuation @Wavelength [nm] 1310/1550/1625
Maximum Attenuation [dB/km] 0.35/0.21/0.24
Conformance Mechanical tests according to BT CW1842 13.1.1-13.1.1. Kink test according to IEC 60794-1-21. High voltage test (11kV) according to BT CW1500-11.
Marking Marking: Example of sheath marking, 1 time/meter: “= xxxxx M = HEXATRONIC – H4036001/12 yy.mm.dd" where yy.mm.dd = year, month and day of manufacture, xxxxx=running meter marking.
Installation Notes The cable shall only be installed using approved suspension clamps. Recommended maximum span length for PIA applications is 68m, taking into account wind loads and 5mm ice coverage, but up to 80m is possible for special cases.
Ordering Information

Supplied lengths: 250m to 6km.

To comply with PIA regulations Hexatronic part numbers for the ULW cable range consist of a base number and a suffix containing a unique two letter customer code and a reel length code. The customer name and the part number are also printed on the sheath.

Example: H403011/36XX-1 = ULW cable 36F G657A1 for customer “XX” with length “1” (1000m).

Technical image # 1
TIA 598 Color Code Chart
