TOL4032003+A

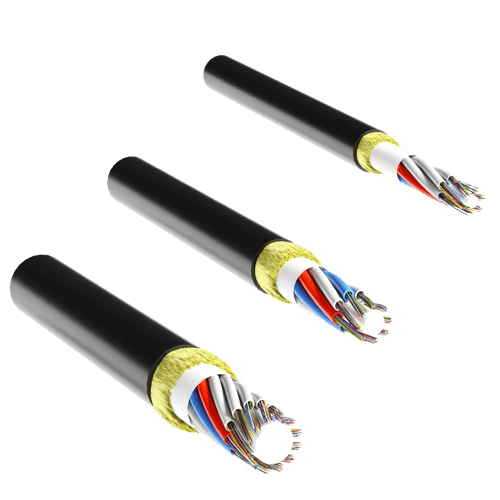

ADSS Loose Tube Aerial Cable

GRHSLDV 12-144 fibers G652D StdE 4.0 kN

  • Slim and low weight
  • Dry construction
  • Self-supporting
  • Dielectric
  • Halogen-free
  • Maximum span length of 60-170 meters
ADSS Aerial Fiber Optic Cable

The cable is an ADSS, non-metallic cable using concentric core design. The cable utilizes aramid yarn as strength member. This extremely slim and low weight cable is suitable for a maximum span length of 60-170 meters. It can be installed adjacent to power lines up to 120 kV.

The cable is part of our Aerial Cable System comprising cables, installation and network materials.

The cable is a non-metallic cable using concentric core design and aramide yarns as strength member.

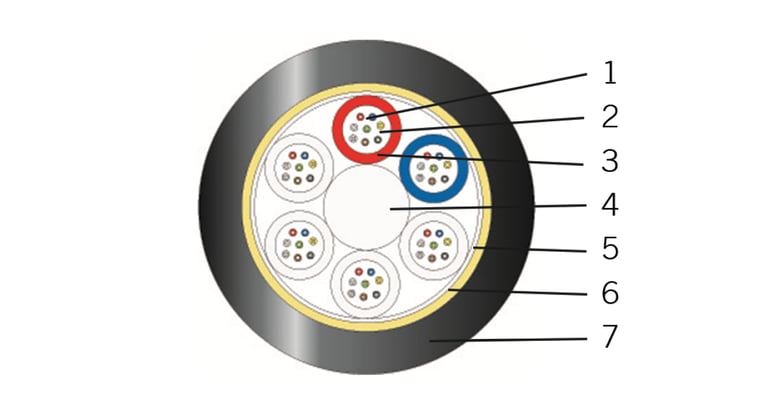

ADSS Loose Tube Aerial Cable - Technical Details
  1. Primary coated fiber: Silica, acrylate
  2. Filling compound: Thixotropic gel
  3. Loose tube: PBT
  4. Central strength member: Glass fiber reinforced plastic, PE
  5. Water blocking: Swellable tape
  6. Strength member: Aramide yarns
  7. Sheath: Polyethylene, Black

Technical Information

Product Color Black Sheath
Color Code STDE
Temperature, Operation [°C] -40 to +70
Temperature, Storage [°C] -40 to +70
Temperature, Installation [°C] -15 to +50
Water Blocking Longitudinal water blocking according to IEC 60794-1-2-F5.
Fiber Type G652D
Attenuation @Wavelength [nm] 1310/1550/1625
Maximum Attenuation [dB/km] 0.36/0.23/0.25
Conformance Longitudinal water blocking according to IEC 60794-1-2-F5.
Mechanical and environmental tests in accordance with IEC 60794-1.
Fiber parameters and tests according to the IEC series 60793-2 and 60793-1.
Marking Example of sheath marking, 1 time/meter:
“HEXATRONIC A35 yymmddhh TOL4032003/96A GRHSLDV 96 G.652.D xxxxx m"
where yymmddhh = year, month, day and hour of manufacture, xxxxx=running meter marking.
Installation Notes It can be installed adjacent to power lines up to 120 kV.
Ordering Information Supplied lengths: 2, 4, 6 or 8 km

Technical image # 1
StdE Color Code Chart
