HNCD520225/11

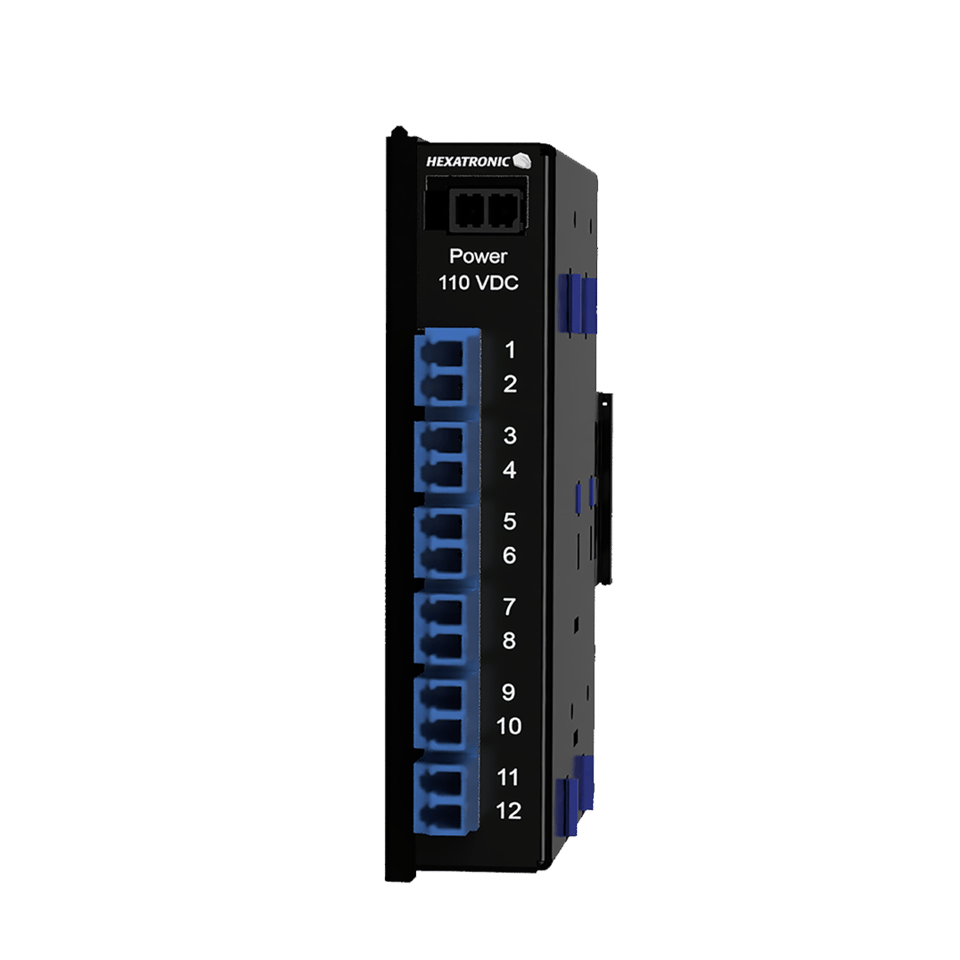

Hybrid ODF Panel
Termination Panel for the Hexatronic InOne System
- For DIN rail mount
- Small dimension WxHxD 32x145x120mm
- Up to 12 fibers (using 6 x LC duplex cut out slots)
- Supports SC and LC adapters
- Power inlet connector Maxi-fit
- Rating max 120 Vdc, 10 A
- Front serviced
Hybrid ODF mounted on DIN-rail
Hybrid ODF mounted with cable
Included materials are:
- Cable ties to fastened the hybrid cable to ODF and protection tube for power cords
- Power cord with MegaFit connector and open end for connection to DC power unit
The termination unit is made of painted Stainless sheet steel. All products are in accordance with RoHS.
Color
Black
Technical Information
Sort by
Item name
Add to list
More
- Product: HODF 1kw 6xLCD Hybrid DIN (ID: HNCD520225/11) | Dimensions [mm]: 145 x 32 x 120 | Weight Pcs: 0.3
