MPB30246+
Microduct Assembly 3/2 mm Indoor - High Grade
FRD 3/2 mm 1-24 -way HG
- For indoor installation
- Small or discrete design
- Minimal cross section minimizes the need of large drilling holes
- 3/2 mm microducts
- Halogen-free, flame-retardant, high grade

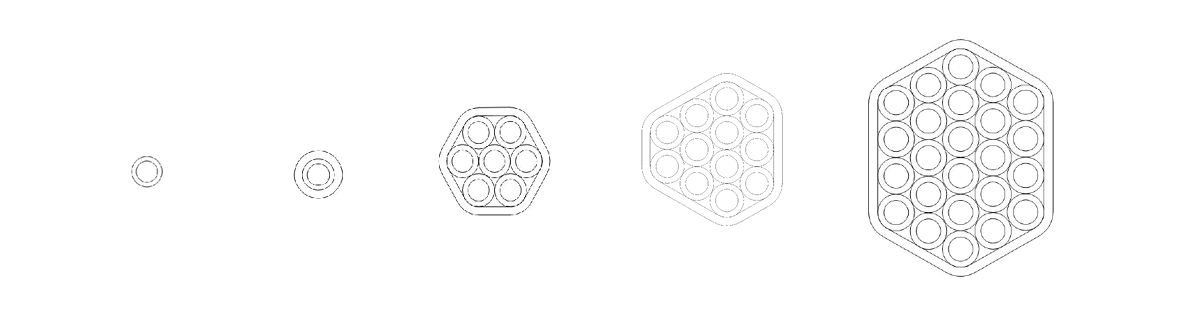

- 1, 7, 12 or 24 over-jacketed ducts
- Low friction inner surface for maximum installation lengths
Microducts and jacket: Halogen-free, flame-retardant polyolefin
Temperature, Operation [°C]
-20 to +60
Temperature, Handling [°C]
-20 to +50
Temperature, Storage [°C]
-20 to +60
Conformance
Abrasion: IEC 60794-1-2-E2B(1)
Kink: IEC 60794-1-2-E10, 20 x outer diameter
Impact: IEC 60794-1-2-E4
Crush: IEC 60794-1-2-E3
Tensile: IEC 60794-1-2-E
Bend: IEC 60794-1-2-E11A
Torsion: IEC 60794-1-2-E
Flexibility: IEC 60794-1-2-E8
Inner Clearance: IEC 60794-5-20, IEC 60794-5-10, Ann. D
Flammability: IEC60332-3-24, IEC60332-1
Halogen Content: IEC 60754-1, 0%
Toxicity index: DEFSTAN 02-713, Pass
Marking
Duct assemblies have markings showing the tube length. The individual microducts are numbered.
Installation Notes
Flammability according to IEC60332-3-24 refers to jacketed empty ducts and jacketed ducts installed with typical versions of Hexatronic blown fiber units. 1-way unjacketed duct MPB30246/01 excluded. The unsheated duct shall be installed in flame resistant protective cover for best fire performance.
Technical Information
Sort by
Item name
Add to list
More
- Product: Microduct 3/2.1 ID High Grade (ID: MPB30246/01) | Color: White | Layout: 3/2.1 | Bend Radius [mm]: 30 | Tensile Force, Installation [N]: 20 | Crush [N/100 mm]: 400 | Impact [J]: 0.01 | Dimensions [mm]: 3 | Weight [kg/km]: 5 | Length [m]: 1000/, 500/K3
- Product: Microduct 1x3/2.1 ID High Grade (ID: MPB30246/1CX) | Color: White | Layout: 1x3/2.1 | Bend Radius [mm]: 65 | Tensile Force, Installation [N]: 100 | Crush [N/100 mm]: 750 | Impact [J]: 0.4 | Dimensions [mm]: 5.2 | Weight [kg/km]: 27 | Length [m]: 1000/, 500/K4
- Product: Microduct 1x3/2.1 ID High Grade (ID: MPB30246/1) | Color: White | Layout: 1x3/2.1 | Bend Radius [mm]: 65 | Tensile Force, Installation [N]: 100 | Crush [N/100 mm]: 750 | Impact [J]: 0.4 | Dimensions [mm]: 5.2 | Weight [kg/km]: 27 | Length [m]: 1000/, 500/K4
- Product: Microduct 2x3/2.1 ID High Grade (ID: MPB30246/2) | Color: White | Layout: 2x3/2.1 | Length [m]: 1000, 500
- Product: Microduct 4x3/2.1 ID High Grade (ID: MPB30246/4) | Color: White | Layout: 4x3/2.1
- Product: Microduct 7x3/2.1 ID High Grade (ID: MPB30246/7CX) | Color: White | Layout: 7x3/2.1 | Bend Radius [mm]: 125 | Tensile Force, Installation [N]: 300 | Crush [N/100 mm]: 1000 | Impact [J]: 1.6 | Dimensions [mm]: 11.2 | Weight [kg/km]: 84 | Length [m]: 500/K6
- Product: Microduct 7x3/2.1 ID High Grade (ID: MPB30246/7) | Color: White | Layout: 7x3/2.1 | Bend Radius [mm]: 125 | Tensile Force, Installation [N]: 300 | Crush [N/100 mm]: 1000 | Impact [J]: 1.6 | Dimensions [mm]: 11.2 | Weight [kg/km]: 84 | Length [m]: 500/K6
- Product: Microduct 12x3/2.1 ID High Grade (ID: MPB30246/12CX) | Color: White | Layout: 12x3/2.1 | Bend Radius [mm]: 150 | Tensile Force, Installation [N]: 500 | Dimensions [mm]: 14.2 | Weight [kg/km]: 131 | Length [m]: 1000/, 500/K7
- Product: Microduct 12x3/2.1 ID High Grade (ID: MPB30246/12) | Color: White | Layout: 12x3/2.1 | Bend Radius [mm]: 150 | Tensile Force, Installation [N]: 500 | Dimensions [mm]: 14.2 | Weight [kg/km]: 131 | Length [m]: 1000/, 500/K7
- Product: Microduct 24x3/2.1 ID High Grade (ID: MPB30246/24CX) | Color: White | Layout: 24x3/2.1 | Bend Radius [mm]: 200 | Tensile Force, Installation [N]: 800 | Crush [N/100 mm]: 1400 | Impact [J]: 2.5 | Dimensions [mm]: 20.2 x 15.8 | Weight [kg/km]: 219 | Length [m]: 1000/, 500/K10
- Product: Microduct 24x3/2.1 ID High Grade (ID: MPB30246/24) | Color: White | Layout: 24x3/2.1 | Bend Radius [mm]: 200 | Tensile Force, Installation [N]: 800 | Crush [N/100 mm]: 1400 | Impact [J]: 2.5 | Dimensions [mm]: 20.2 x 15.8 | Weight [kg/km]: 219 | Length [m]: 1000/, 500/K10
