Microduct Assembly 16/12 mm with Tracer

TWD 16/12 mm 1-7 -way Tr, TIA598 ft

  • For direct burial
  • 1, 2, 4 or 7 bundled ducts
  • 16/12 mm microducts
  • Low friction inner surface
  • Longitudinal grooves for maximum installation lengths
  • Integrated tracer wire under sheath
  • Ripcord optional (1-way always supplied with ripcord)
  • For direct burial
  • 1, 2, 4 or 7 bundled ducts
  • 16/12 mm microducts
  • Low friction inner surface
  • Longitudinal grooves for maximum installation lengths
  • Integrated tracer wire under sheath
  • Ripcord optional (1-way always supplied with ripcord)

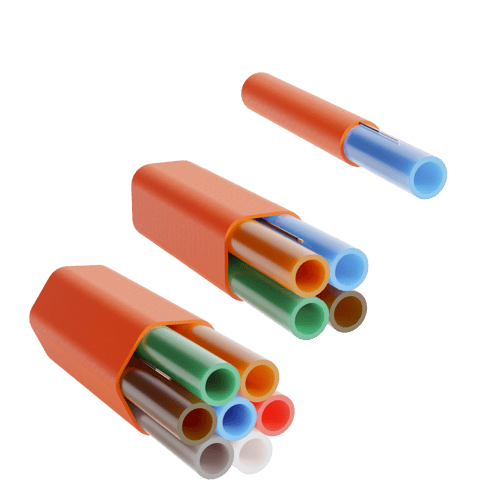

Three microduct assemblies in various colours

The thick walled microduct are designed with an inner low friction surface that enables installation of micro cables or nano cables. The thick inner wall of the microducts allow for installation directly into the ground without the need for additional protection.

The integrated tracer wire saves time and installation cost since an additional wire for tracing is not required.

The duct assemblies are available in several configurations from 1 to 7 microducts.

16/12 mm microducts are optimized for installation of micro cables and nano cables. The microducts have a low-friction inner surface with longitudinal grooves for best blowing performance.

Microduct Assembly 16/12 mm with Tracer - Technical Details

Microducts and outer sheath: HDPE

Tracer Wire: 20 AWG
Material: Isolated, stranded copper

Technical Information

Color Code TIA598
Temperature, Operation [°C] -40 to +60
Temperature, Storage [°C] -40 to +60
Temperature, Installation [°C] -20 to +50
Conformance

ASTM F2160: Standard Specification for solid wall HDPE conduit based on controlled outside diameter.

ASTM D3350 (CELL CLASSIFICATION 334480C OR E): Standard Specification for PE plastic pipe and fitting materials-resins exceeding the above cell class in one or more properties is acceptable.

BELLCORE GR-356-CORE – (SECTION 4.2.5): Siloxane additive in duct wall for permanent low Coefficient of Friction per Bellcore Specification.

TESTING: All microducts are tested before and after oversheath with a metal ball 85% of ID.

Marking Duct assemblies have markings showing the tube length. The individual microducts are numbered and also identified by their color and position in the bundle according to the TIA598 standard.
The assemblies are available in various sheath colors for easy identification.

Technical image # 1
TIA 598 Color Code Chart for Microduct Assemblies
