The thick walled microduct are designed with an inner low friction surface that enables installation of micro cables or nano cables. The thick wall of the microducts allow for installation directly into the ground without the need for additional protection.

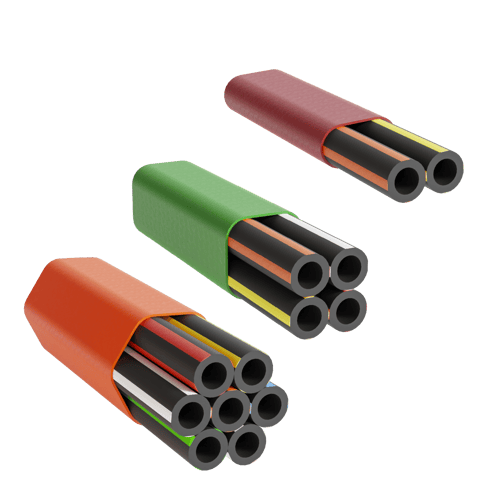

The duct assemblies are available in several configurations from 1 to 7 microducts.
16/10 mm microducts are optimized for installation of micro cables and nano cables. The microducts have a low-friction innner surface with longitudinal grooves for best blowing performance.
Microducts and outer sheath: HDPE
|Temperature, Operation [°C]||-40 to +60|
|Temperature, Storage [°C]||-40 to +60|
|Temperature, Installation [°C]||-20 to +50|
Abrasion: IEC 60794-1-2-E2B(1)
Duct assemblies have markings showing the type and tube length. The individual microducts are identified by their colors.
12 different colors are used according to the S12 standard.
The assemblies are available in various sheath colors for easy identification.
