MPB30221+

Microduct 25/20 mm

TWD 25/20 mm Primary Tube

  • For direct burial
  • 25/20 mm microducts
  • Low friction inner surface
  • Longitudinal grooves for maximum installation lengths

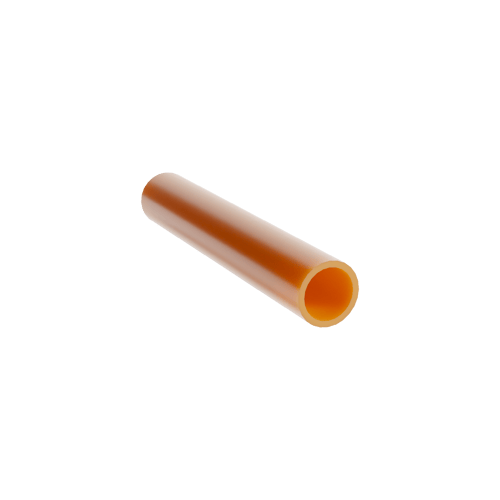

One, orange thick walled microduct

The thick walled microduct are designed with an inner low friction surface that enables installation of micro cables or nano cables. The thick wall of the microducts allow for installation directly into the ground without the need for additional protection.

25/20 mm microducts are optimized for installation of micro cables and nano cables. The microducts have a low-friction innner surface with longitudinal grooves for best blowing performance.

Microducts: HDPE

Technical Information

Temperature, Operation [°C] -40 to +60
Temperature, Storage [°C] -40 to +60
Temperature, Installation [°C] -20 to +50
Conformance

Abrasion: IEC 60794-1-2-E2B(1)
Kink: IEC 60794-1-2-E10, 20 x outer diameter
Impact: IEC 60794-1-2-E4
Crush: IEC 60794-1-2-E3
Tensile: IEC 60794-1-2-E
Bend: IEC 60794-1-2-E11A
Torsion: IEC 60794-1-2-E
Flexibility: IEC 60794-1-2-E8
Inner Clearance: IEC 60794-5-20, IEC 60794-5-10, Ann. D

Marking

Microducts have markings showing the type and tube length. The individual microducts are identified by their colors.

12 different colors are available: orange, yellow, red, white, green, violet, blue, grey, turquoise,black, brown, pink.
