5/MPB30285+

Microduct 14/10 mm

TWD 14/10 mm Primary Tube, Striped

  • For direct burial
  • 14/10 mm microducts
  • Low friction inner surface
  • Longitudinal grooves for maximum installation lengths

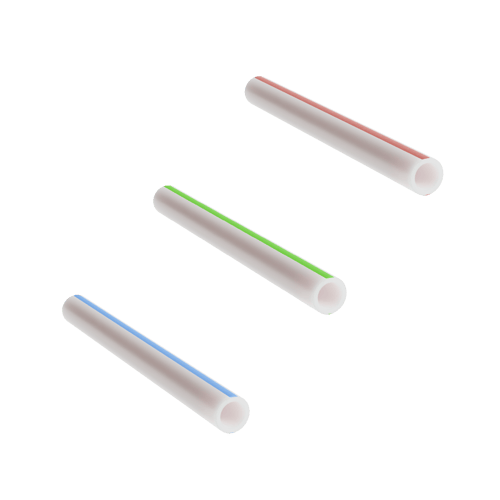

Three, striped thick-walled microducts

The thick-walled microducts have an inner low friction surface that enables installation of nano cables or fiber optic micro cables. The thick inner wall of the microducts allow for installation directly into the ground without the need for additional protection. The microducts are optimized for best performance in combination with the Hexatronic Raptor and Viper air-blown cabling systems.

The microducts have an outer/inner diameter of 14/10 mm. All microducts have two colored stripes.

Micro ducts are made of Polyethylene (HDPE)

All materials are halogen free.

Technical Information

Temperature, Operation [°C] -40 to +60
Temperature, Storage [°C] -40 to +60
Temperature, Installation [°C] -20 to +50
Conformance

Abrasion: IEC 60794-1-2-E2B(1)
Kink: IEC 60794-1-2-E10, 20 x outer diameter
Impact: IEC 60794-1 2-E4
Crush: IEC 60794-1 2-E3
Tensile: IEC 60794-1-2-E
Bend: IEC 60794-1-2-E11A
Torsion: IEC 60794-1-2-E
Repeated bending: IEC 60794-1 2-E6
Inner clearance: IEC 60794-5-10, Ann. D

Ordering Information Supplied lengths: 1000 m
