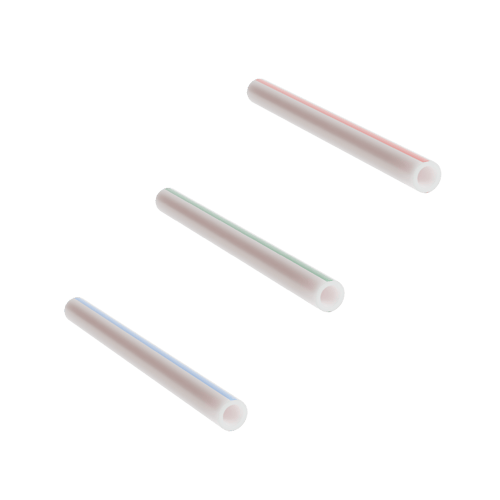

The thick-walled microducts have an inner low friction surface that enables installation of nano cables or fiber optic micro cables. The thick inner wall of the microducts allow for installation directly into the ground without the need for additional protection. The microducts are optimized for best performance in combination with the Hexatronic Raptor and Viper air-blown cabling systems.
The microducts have an outer/inner diameter of 12/8 mm. All microducts have two colored stripes.
Micro ducts are made of Polyethylene (HDPE)
All materials are halogen free.
12 different colors are available: red, green, blue, yellow, white,
grey, brown, violet, turquoise, black, orange and pink.
|Temperature, Operation [°C]||-40 to +60|
|Temperature, Storage [°C]||-40 to +60|
|Temperature, Installation [°C]||-20 to +50|
Abrasion: IEC 60794-1-2-E2B(1)
|Ordering Information||Supplied lengths: 1000 m|
