TOL4019044+C

High Performance Micro Cable – Termite Protected

Nylon Coated 12-432 fibers G657A1 TIA598

  • Up to 432 fibers
  • Super slim design with additional termite resistant PA sheath
  • Excellent installation performance
  • Unique design with robust inner tubes that do not kink
  • Temperature range from -45 to +70°C
  • Excellent bend performance, ≥70 mm
  • Easy to prepare and identify fibers
  • Ultra low attenuation in cable
  • Up to 432 fibers
  • Super slim design with additional termite resistant PA sheath
  • Excellent installation performance
  • Unique design with robust inner tubes that do not kink
  • Temperature range from -45 to +70°C
  • Excellent bend performance, ≥70 mm
  • Easy to prepare and identify fibers
  • Ultra low attenuation in cable

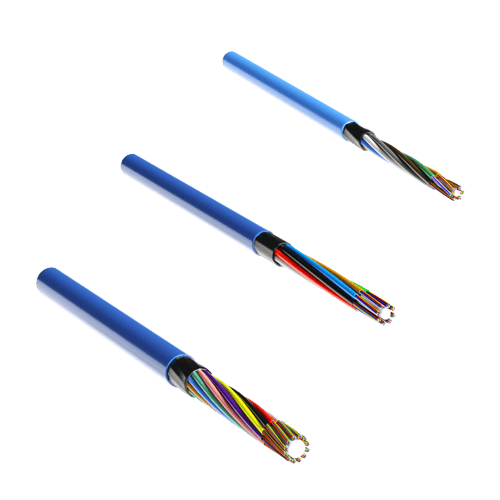

Three different versions of Hexatronic Viper micro cables with blue outer sheath

The Hexatronic Viper series of micro cables are characterized by state of the art installation performance when installed by blowing into microducts. Particularly, installations in access networks with difficult routes, which are facilitated by the enhanced performance of the Viper cables. All parameters such as cable diameter, sheath friction, cable stiffness etc are optimized for best installation performance without compromizing mechanical or environmental properties. The micro cables are based on a slim loose tube design with up to 36 tubes per cable. The design facilitates fiber preparation and mid-span access. The cables are suitable for long-distance, air blown installation in microducts, with an inner diameter of as little as 8 to 12 mm. The cables have excellent bend performance and an extremely wide operational temperature range.

The termite resistant version features an extra, thin Polyamide sheath on top of the standard HDPE sheath.

The Micro Cables are designed with one, two or three layers of inner protective tubes made of a unique Polyamide compound. The Polyamide gives a special strength to the product, while increasing the bending properties as well as other benefits such as extreme temperature resistance. Each tube contains 12 or 24 fibers. As a result, The Viper Micro Cables are more durable during the installation process as they are able to withstand rough handling. The unique cable design with an extended operational temperature range of -45 to +70°C can be used in many environments, on all continents where heat and cold are often a major concern.

High Performance Micro Cable - Termite Protected - Technical Details
  1. Primary coated fiber: Silica, acrylate
  2. Loose tube: PA
  3. Central strength member: Glass fiber reinforced plastic, PE
  4. Slit up yarn: Aramide yarn
  5. Wrapping: Water blocking yarns
  6. Sheath: Polyethylene, halogen-free. Black fillers can replace empty white tubes.
  7. Termite resistant sheath: Polyamide

Technical Information

Product Color Blue Sheath
Color Code TIA598
Temperature, Operation [°C] -45 to +70
Temperature, Storage [°C] 45 to +70
Temperature, Installation [°C] -15 to +50
Water Blocking Longitudinal water blocking according to IEC 60794-1-2-F5B
Fiber Type G657A1
Attenuation @Wavelength [nm] 1310/1383/1550
Typical Attenuation [dB/km] 0.32/0.32/0.18
Average Attenuation [dB/km] 0.33/0.33/0.21
Maximum Attenuation [dB/km] 0.36/0.36/0.23
Conformance Longitudinal water blocking according to IEC 60794-1-2-F5B. Mechanical and environmental tests in accordance with IEC 60794-5-10. Fiber parameters and tests according to the IEC series 60793-2 and 60793-1.
Marking The cables are length marked in meters, and the tubes and fibers are color coded according to TIA598 (Bellcore).
Installation Notes

Typical installation performance:

  • Ducts ID 8-10 mm, cable OD ≤6.7 mm: 2000 m
  • Ducts ID 12 mm, cable OD ≤8.0 mm: 2000 m
  • Ducts ID 15-16 mm, cable OD <11 mm: 2000 m, cable OD 11-12 mm: 1500 m

Installation performance verified on Hexatronic test track, according to IEC 60794. Installation performance is affected by the installed path, environmental conditions, installation equipment etc and actual performance may therefore deviate from the above specified values.

If the cable is installed by blowing the temperature shall be -15 to +40°C. The cable shall not be stored in direct sunlight. The sun may heat up the cable over the permitted temperature limit.

Ordering Information Supplied lengths: 2, 4, 8 km

Technical image # 1
TIA 598 Color Code Chart
