- High Performance Micro Cable – Super Slim
TOL4019035+AH
High Performance Micro Cable – Super Slim
GNHL 12-864 fibers G657A1 200 µm S12
- Super slim design with 200um fibers
- Up to 864 fibers
- Excellent installation performance
- Unique design with robust inner tubes that do not kink
- Temperature range from -40 to +70°C (12-96f: -35 to +70°C)
- Excellent bend performance, ≥30 mm
- Easy to prepare and identify fibers
- Super slim design with 200um fibers
- Up to 864 fibers
- Excellent installation performance
- Unique design with robust inner tubes that do not kink
- Temperature range from -40 to +70°C (12-96f: -35 to +70°C)
- Excellent bend performance, ≥30 mm
- Easy to prepare and identify fibers

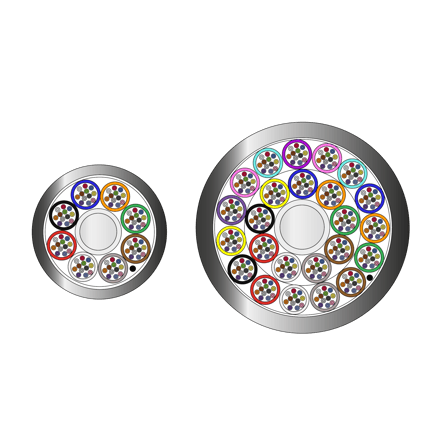

The Hexatronic Viper series of micro cables are characterized by state of the art installation performance when installed by blowing into microducts. Particularly, installations in access networks with difficult routes, which are facilitated by the enhanced performance of the Viper cables.
All parameters such as cable diameter, sheath friction, cable stiffness etc are optimized for best installation performance without compromizing mechanical or environmental properties.
The micro cables are based on a slim loose tube design with up to 36 tubes per cable. The design facilitates fiber preparation and mid-span access. The cables are suitable for long-distance, air blown installation in microducts, with an inner diameter of 8 to 16 mm, depending on fiber count. The cables have excellent bend performance and an extremely wide operational temperature range.
The Micro Cables are designed with one, two or three layers of inner protective tubes made of a unique compound. The compound gives a special strength to the product, while increasing the bending properties as well as other benefits such as extreme temperature resistance.
To enable installation into smallest possible microducts, the Hexatronic Viper 200 series is designed with 200 µm fibers
- Primary coated fiber: Silica, acrylate
- Loose tube: PA
- Central strength member: Glass fiber reinforced plastic, PE
- Slit up yarn: Aramide yarn 5. Wrapping: Water blocking yarns
- Sheath: Polyethylene, halogen-free
Black fillers can replace empty white tubes.
Technical Information
| Product Color | Black Sheath |
|---|---|
| Color Code | S12 |
| Temperature, Operation [°C] | -40 to +70 (12-96f: -35 to +70) |
| Temperature, Storage [°C] | -40 to +70 |
| Temperature, Installation [°C] | -15 to +50 |
| Water Blocking | Longitudinal water blocking according to IEC 60794-1-2-F5C |
| Fiber Type | G657A1 |
| Attenuation @Wavelength [nm] | 1310/1383/1550 |
| Typical Attenuation [dB/km] | 0.32/0.32/0.19 |
| Average Attenuation [dB/km] | 0.33/0.33/0.21 |
| Maximum Attenuation [dB/km] | 0.36/0.36/0.23 |
| Conformance | Longitudinal water blocking according to IEC 60794-1-2-F5C. Mechanical and environmental tests in accordance with IEC 60794-5-10. Fiber parameters and tests according to the IEC series 60793-2 and 60793-1. |
| Marking | Example of sheath marking, 1 time/meter: "HEXATRONIC A35 Viper yymmddhh TOL4019035/288AH GNHL-U-CDGNRV 288/T24 G657A1 200um S12 xxxxx M" where yymmddhh = year, month, day and hour of manufacture, xxxxx=running meter marking |
| Installation Notes | Typical installation performance:
Installation performance verified on Hexatronic test track, according to IEC 60794. Installation performance is affected by the installed path, environmental conditions, installation equipment etc and actual performance may therefore deviate from the above specified values. The cable should be installed at a temperature between -15 to +40°C. The cable shall not be stored in direct sunlight. The sun may heat up the cable over the permitted temperature limit. |
| Ordering Information | Supplied lengths: 2, 4, 8 km |
