KRPM258+C1

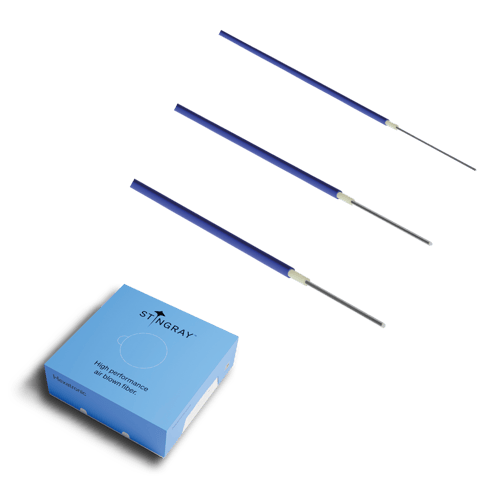

High Performance Air Blown Fiber
ABF 2-12 fibers G657A1 TIA598 - Box
- Extra strong and durable design
- Smooth, low-friction jacket
- 2, 4, 6, 8 or 12 fiber, G657A1 bend resistant fibers
- Extra wide operational temperature range
- Water and Ice tested
- State of the art blowing performance
- Zero jacket shrinkage
1. Primary coated fiber: Silica, acrylate
2. Primary coating: UV-cured acrylate
3. Sheath: Low friction polyolefin
A mechanical filler is used in the 2-fiber unit as well as in the center of the 6-fiber unit.
Temperature, Operation [°C]
–45 to +70
Temperature, Handling [°C]
–15 to +60
Temperature, Storage [°C]
–45 to +70
Fiber Type
G657A1
Attenuation @Wavelength [nm]
1310/1550
Attenuation Max
0.38/0.25
Color
Dark blue
Conformance
Air blown fiber: IEC 60794-5-20
Bend radius: IEC 60794-1-21, Method E11
Crush resistance: IEC 60794-1-21 Method E3
Kink: IEC 60794-1-21 Method E10
Tensile force during installation: IEC 60794-1-22, Method F1
Fiber parameters and tests according to the IEC series 60793-2 and 60793-1
Color code
TIA598
Installation Notes
Always check local fire requirements when installing in indoor environments.
Typical installation performance:
- Ducts ID 3.5-4 mm: 1000 m
Installation performance is affected by the installed path, environmental conditions, installation equipment etc and actual performance may therefore deviate from the above specified values.
Reaction to fire
EN 13501-6 CPR classification Fca
Technical Notes
Water immersion and repeated freeze test:
Hexatronic standard test, 100 cycles, –25, to +15ºC
Ordering Info
Supplied lengths: 1000, 2000, 4000, 6000 m
Delivered in cardboard boxes
Technical Information
TIA 598 Color Code Chart
Sort by
Item name
Add to list
More
- Product: ABF 2 G657A1 TIA598 PAN Stingray (ID: KRPM258047/2000M) | Color: Dark blue | No. of Fibers: 2 | Layout: 1x2 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 12 | Diameter: 1.1 | Weight [kg/km]: 0.94 | Length [m]: 2000 | Form of delivery: Box
- Product: ABF 2 G657A1 TIA598 PAN Stingray (ID: KRPM258047/4000M) | Color: Dark blue | No. of Fibers: 2 | Layout: 1x2 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 12 | Diameter: 1.1 | Weight [kg/km]: 0.94 | Length [m]: 4000 | Form of delivery: Box
- Product: ABF 2 G657A1 TIA598 PAN Stingray (ID: KRPM258047/6000M) | Color: Dark blue | No. of Fibers: 2 | Layout: 1x2 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 12 | Diameter: 1.1 | Weight [kg/km]: 0.94 | Length [m]: 6000 | Form of delivery: Box
- Product: ABF 4 G657A1 TIA598 PAN Stingray (ID: KRPM258066/2000M) | Color: Dark blue | No. of Fibers: 4 | Layout: 1x4 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 24 | Diameter: 1.1 | Weight [kg/km]: 1.02 | Length [m]: 2000 | Form of delivery: Box
- Product: ABF 4 G657A1 TIA598 PAN Stingray (ID: KRPM258066/4000M) | Color: Dark blue | No. of Fibers: 4 | Layout: 1x4 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 24 | Diameter: 1.1 | Weight [kg/km]: 1.02 | Length [m]: 4000 | Form of delivery: Box
- Product: ABF 4 G657A1 TIA598 PAN Stingray (ID: KRPM258066/6000M) | Color: Dark blue | No. of Fibers: 4 | Layout: 1x4 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 24 | Diameter: 1.1 | Weight [kg/km]: 1.02 | Length [m]: 6000 | Form of delivery: Box
- Product: ABF 6 G657A1 TIA598 PAN Stingray (ID: KRPM258048/2000M) | Color: Dark blue | No. of Fibers: 6 | Layout: 1x6 | Bend Radius [mm]: 25 | Tensile Force, Installation [N]: 36 | Diameter: 1.25 | Weight [kg/km]: 1.2 | Length [m]: 2000 | Form of delivery: Box
- Product: ABF 6 G657A1 TIA598 PAN Stingray (ID: KRPM258048/4000M) | Color: Dark blue | No. of Fibers: 6 | Layout: 1x6 | Bend Radius [mm]: 25 | Tensile Force, Installation [N]: 36 | Diameter: 1.25 | Weight [kg/km]: 1.2 | Length [m]: 4000 | Form of delivery: Box
- Product: ABF 8 G657A1 TIA598 PAN Stingray (ID: KRPM258068/2000M) | Color: Dark blue | No. of Fibers: 8 | Layout: 1x8 | Bend Radius [mm]: 35 | Tensile Force, Installation [N]: 48 | Diameter: 1.4 | Weight [kg/km]: 1.59 | Length [m]: 2000 | Form of delivery: Box
- Product: ABF 8 G657A1 TIA598 PAN Stingray (ID: KRPM258068/4000M) | Color: Dark blue | No. of Fibers: 8 | Layout: 1x8 | Bend Radius [mm]: 35 | Tensile Force, Installation [N]: 48 | Diameter: 1.4 | Weight [kg/km]: 1.59 | Length [m]: 4000 | Form of delivery: Box
- Product: ABF 12 G657A1 PAN Stingray (ID: KRPM258017/500M) | Color: Dark blue | No. of Fibers: 12 | Layout: 1x12 | Bend Radius [mm]: 35 | Tensile Force, Installation [N]: 70 | Diameter: 1.4 | Weight [kg/km]: 1.65 | Length [m]: 500 | Form of delivery: Box
- Product: ABF 12 G657A1 PAN Stingray (ID: KRPM258017/1000M) | Color: Dark blue | No. of Fibers: 12 | Layout: 1x12 | Bend Radius [mm]: 35 | Tensile Force, Installation [N]: 70 | Diameter: 1.4 | Weight [kg/km]: 1.65 | Length [m]: 1000 | Form of delivery: Box
- Product: ABF 12 G657A1 PAN Stingray (ID: KRPM258017/2000M) | Color: Dark blue | No. of Fibers: 12 | Layout: 1x12 | Bend Radius [mm]: 35 | Tensile Force, Installation [N]: 70 | Diameter: 1.4 | Weight [kg/km]: 1.65 | Length [m]: 2000 | Form of delivery: Box
- Product: ABF 12 G657A1 PAN Stingray (ID: KRPM258017/4000M) | Color: Dark blue | No. of Fibers: 12 | Layout: 1x12 | Bend Radius [mm]: 35 | Tensile Force, Installation [N]: 70 | Diameter: 1.4 | Weight [kg/km]: 1.65 | Length [m]: 4000 | Form of delivery: Box
