1/RPM258+C1

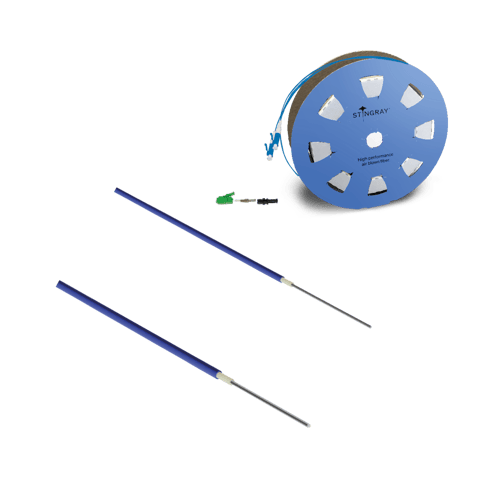

High Performance Air Blown Fiber - Dual-end, Pre-terminated
ABF 2 fibers G657A1 TIA598 - Reel
- Pre-terminated fiber on reel
- Blowable ferrule at outer end
- Time saving installation
- Several connector options
- Extra strong and durable design
- Smooth, low-friction jacket
- 2 fibers, G657A1 bend resistant fibers
- Extra wide operational temperature range
- Water and Ice tested
- State of the art blowing performance
- Zero jacket shrinkage

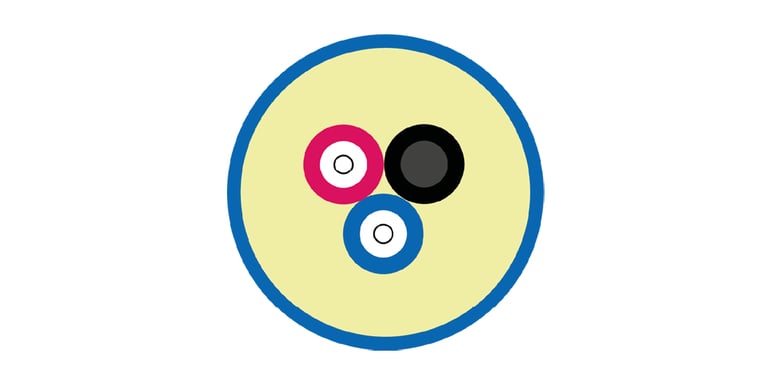

1. Primary coated fiber: Silica, acrylate
2. Primary coating: UV-cured acrylate
3. Sheath: Low friction polyolefin
A mechanical filler is used in the 2-fiber unit.
Temperature, Operation [°C]
-40 to +70
Temperature, Handling [°C]
-15 to +50
Temperature, Storage [°C]
-40 to +70
Fiber Type
G657A1
Attenuation @Wavelength [nm]
1310/1550
Attenuation Max
0.38/0.25
Insertion Loss, max [dB]
0.25
Return Loss, min [dB]
SC/UPC & LC/UPC: 55, SC/APC & LC/APC: 65
Color
Dark blue
Conformance
Air blown fiber: IEC 60794-5-20
Bend radius: IEC 60794-1-21, Method E11
Crush resistance: IEC 60794-1-21 Method E3
Kink: IEC 60794-1-21 Method E10
Tensile force during installation: IEC 60794-1-22, Method F1
Fiber parameters and tests according to the IEC series 60793-2 and 60793-1
Color code
TIA598
Installation Notes
Typical installation performance:
- Ducts ID 3.5-4 mm: Recommended upto 500 m
Installation performance is affected by the installed path, environmental conditions, installation equipment etc and actual performance may therefore deviate from the above specified value
Technical Notes
Water immersion and repeated freeze test:
Hexatronic standard test, 100 cycles, –25, to +15ºC
Ordering Info
Supplied lengths: Fixed lengths from 25 to 500m
Delivered on miniature cardboard reels
Technical Information
TIA 598 Color Code Chart
Sort by
Item name
Add to list
More
- Product: ABF 1 SC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 25M (ID: 1/RPM258301/25M) | Color: Dark blue | No. of Fibers: 2 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 25 | Form of delivery: Reel
- Product: ABF 1 LC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 25M (ID: 1/RPM258309/25M) | Color: Dark blue | No. of Fibers: 2 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 25 | Form of delivery: Reel
- Product: ABF 1 SC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 50M (ID: 1/RPM258301/50M) | Color: Dark blue | No. of Fibers: 2 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 50 | Form of delivery: Reel
- Product: ABF 1 SC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 75M (ID: 1/RPM258301/75M) | Color: Dark blue | No. of Fibers: 2 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 75 | Form of delivery: Reel
- Product: ABF 1 SC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 100M (ID: 1/RPM258301/100M) | Color: Dark blue | No. of Fibers: 2 | Layout: 1xSC/APC to 1xLC/APC | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 100 | Form of delivery: Reel
- Product: ABF 1 LC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 100M (ID: 1/RPM258309/100M) | Color: Dark blue | No. of Fibers: 2 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 100 | Form of delivery: Reel
- Product: ABF 1 SC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 125M (ID: 1/RPM258301/125M) | Color: Dark blue | No. of Fibers: 2 | Layout: 1xSC/APC to 1xLC/APC | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 125 | Form of delivery: Reel
- Product: ABF 1 SC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 150M (ID: 1/RPM258301/150M) | Color: Dark blue | No. of Fibers: 2 | Layout: 1xSC/APC to 1xLC/APC | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 150 | Form of delivery: Reel
- Product: ABF 1 SC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 175M (ID: 1/RPM258301/175M) | Color: Dark blue | No. of Fibers: 2 | Layout: 1xSC/APC to 1xLC/APC | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 175 | Form of delivery: Reel
- Product: ABF 1 SC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 200M (ID: 1/RPM258301/200M) | Color: Dark blue | No. of Fibers: 2 | Layout: 1xSC/APC to 1xLC/APC | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 200 | Form of delivery: Reel
- Product: ABF 1 SC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 250M (ID: 1/RPM258301/250M) | Color: Dark blue | No. of Fibers: 2 | Layout: 1xSC/APC to 1xLC/APC | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 250 | Form of delivery: Reel
- Product: ABF 1 SC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 300M (ID: 1/RPM258301/300M) | Color: Dark blue | No. of Fibers: 2 | Layout: 1xSC/APC to 1xLC/APC | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 300 | Form of delivery: Reel
- Product: ABF 1 SC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 350M (ID: 1/RPM258301/350M) | Color: Dark blue | No. of Fibers: 2 | Layout: 1xSC/APC to 1xLC/APC | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 350 | Form of delivery: Reel
- Product: ABF 1 SC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 400M (ID: 1/RPM258301/400M) | Color: Dark blue | No. of Fibers: 2 | Layout: 1xSC/APC to 1xLC/APC | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 400 | Form of delivery: Reel
- Product: ABF 1 SC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 450M (ID: 1/RPM258301/450M) | Color: Dark blue | No. of Fibers: 2 | Layout: 1xSC/APC to 1xLC/APC | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 450 | Form of delivery: Reel
- Product: ABF 1 SC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 500M (ID: 1/RPM258301/500M) | Color: Dark blue | No. of Fibers: 2 | Layout: 1xSC/APC to 1xLC/APC | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 500 | Form of delivery: Reel
- Product: ABF 1 LC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 50M (ID: 1/RPM258309/50M) | Color: Dark blue | No. of Fibers: 2 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 50 | Form of delivery: Reel
- Product: ABF 1 LC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 75M (ID: 1/RPM258309/75M) | Color: Dark blue | No. of Fibers: 2 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 75 | Form of delivery: Reel
- Product: ABF 1 LC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 125M (ID: 1/RPM258309/125M) | Color: Dark blue | No. of Fibers: 2 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 125 | Form of delivery: Reel
- Product: ABF 1 LC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 150M (ID: 1/RPM258309/150M) | Color: Dark blue | No. of Fibers: 2 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 150 | Form of delivery: Reel
- Product: ABF 1 LC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 175M (ID: 1/RPM258309/175M) | Color: Dark blue | No. of Fibers: 2 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 175 | Form of delivery: Reel
- Product: ABF 1 LC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 200M (ID: 1/RPM258309/200M) | Color: Dark blue | No. of Fibers: 2 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 200 | Form of delivery: Reel
- Product: ABF 1 LC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 250M (ID: 1/RPM258309/250M) | Color: Dark blue | No. of Fibers: 2 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 250 | Form of delivery: Reel
- Product: ABF 1 LC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 300M (ID: 1/RPM258309/300M) | Color: Dark blue | No. of Fibers: 2 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 300 | Form of delivery: Reel
- Product: ABF 1 LC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 350M (ID: 1/RPM258309/350M) | Color: Dark blue | No. of Fibers: 2 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 350 | Form of delivery: Reel
- Product: ABF 1 LC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 400M (ID: 1/RPM258309/400M) | Color: Dark blue | No. of Fibers: 2 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 400 | Form of delivery: Reel
- Product: ABF 1 LC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 450M (ID: 1/RPM258309/450M) | Color: Dark blue | No. of Fibers: 2 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 450 | Form of delivery: Reel
- Product: ABF 1 LC/APC-LC/APC Ferrule 2 G657A1 TIA598 REEL 500M (ID: 1/RPM258309/500M) | Color: Dark blue | No. of Fibers: 2 | Bend Radius [mm]: 20 | Tensile Force, Installation [N]: 5 | Diameter: 1.1 | Length [m]: 500 | Form of delivery: Reel
