GHD
- Fiber Type: Single or Multimode
- Layout: 4 to 52 termini
- Shell Size: 11 to 23
- Standard: D38999 #18
- Termini: 1.25mm GHD-181
- Genderless design with alignment sleeve

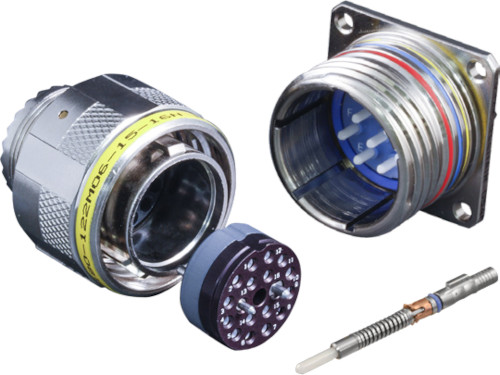

The GHD (Glenair High Density) fiber optic connector with size 18 genderless fiber termini is a high-density alternative to larger form-factor MIL-DTL-38999 connectors. GHD is designed for military and aerospace applications that require reduced size and weight in a D38999-connector style. The GHD series can be configured in 7 different shell sizes and insert arrangements with up to 52 optical channels. Connector shell material available in Aluminium, Composite, Stainless Steel and Marine Bronze, with different connector shell finishing.
GHD insert arrangement:
- Shell Size 11: 4 optical channels
- Shell Size 13: 6 optical channels
- Shell Size 15: 16 optical channels
- Shell Size 17: 22 optical channels
- Shell Size 19: 30 optical channels
- Shell Size 21: 40 optical channels
- Shell Size 23: 52 optical channels
Glenair High Density
Fiber Optic Performance:
- Insertion Loss SM: 0.30dB typ
- Insertion Loss MM: 0.35dB typ
- Return Loss PC polish: -40dB
- Return Loss Enhanced PC Polish: -50dB
Mechanical & Environmental:
- Altitude: 15 000ft (4572m) for 1h
- Durability: 500 matings
- Humidity Cycling: -10°C to +65°C, 5 cycles
- Shock Resistance: 300G Peak for 3ms
- Temperature Operating: -55°C to +165°C
- Vibration: 49.5G @ amb.temp. Z-Y axis, 4h
Contact us for ordering information and technical support.
