Maxi

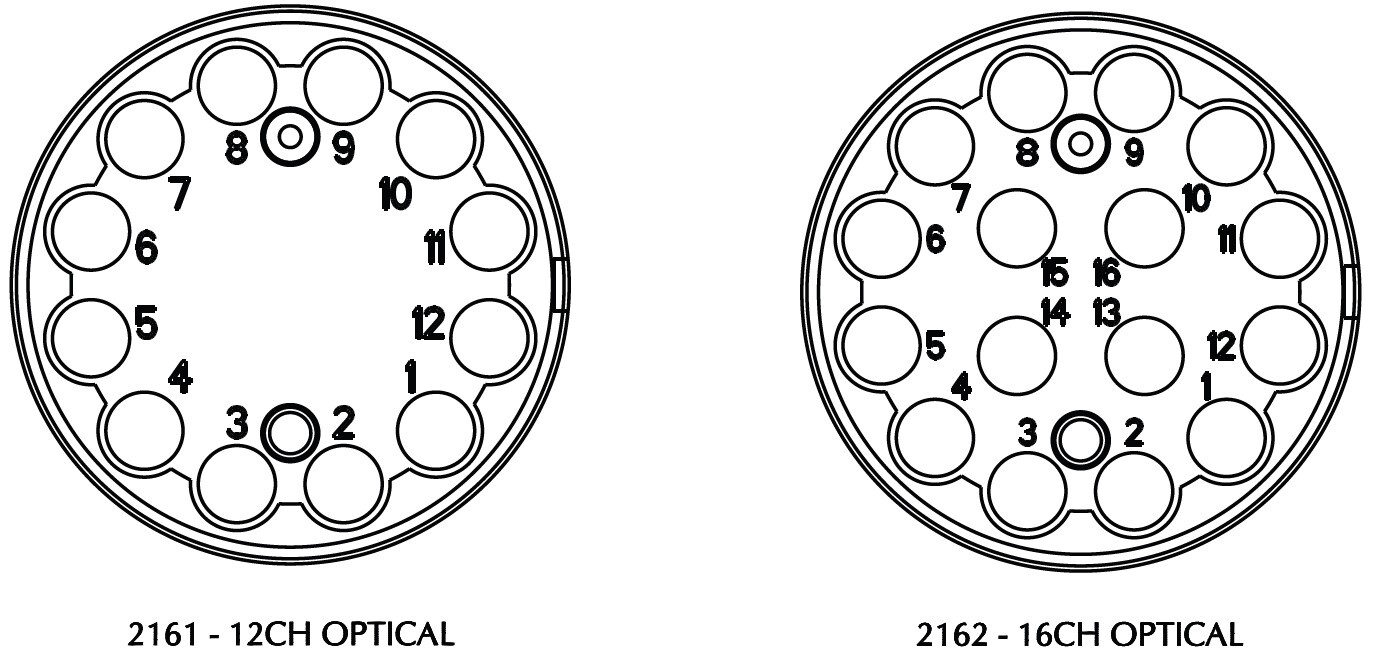

- Channel Count: 12 or 16 channels
- Fiber Type: Single or Multimode
- Optical Performance: MIL-DTL-83526

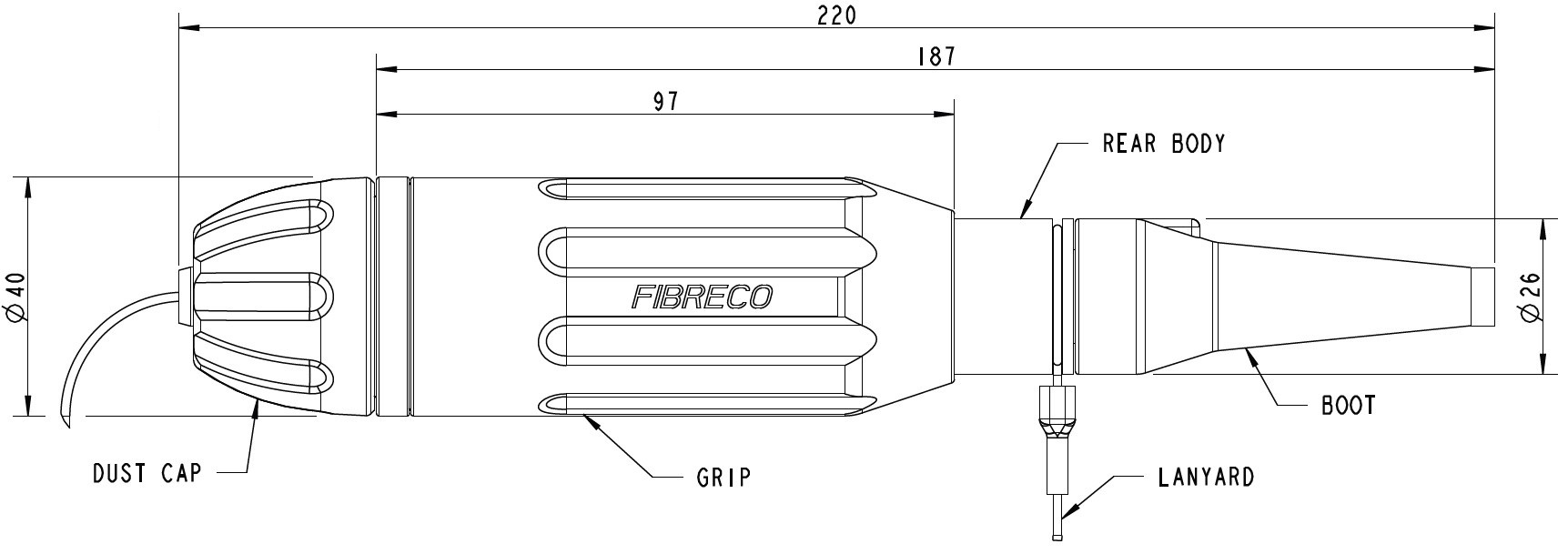

- Plug Diameter: 40mm
- Optional: Bronze or Stainless Steel
Expanded beam connectors from Cinch Fibreco have been designed for use in the most demanding harsh environment applications including military tactical communications, outside broadcast, petrochemical plant, mining, and offshore systems. The increased size of the optical beam reduces susceptibility of the interconnect to contamination and allows for easy cleaning/maintenance in the field.

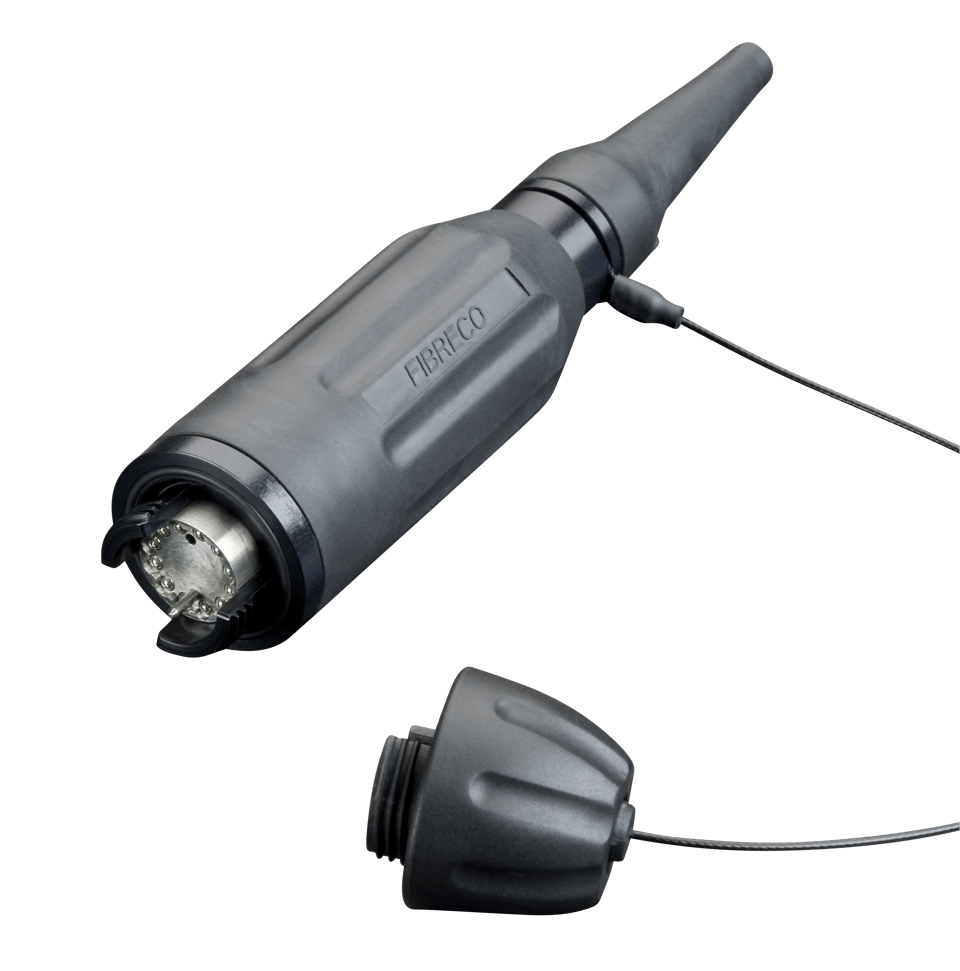

The Maxi size expanded beam connector from Cinch Fibreco features a fully sealed hermaphroditic coupling, high multimode and singlemode optical performance, and a plug shell diameter of just 40mm. In the event of the connector suffering severe damage in use, the connector design enables replacement of the connector front body and grip ring without the need to re-terminate the fibers.
Optical performance in line with MIL-DTL-83526
FIBRECO
Hermaphroditic design, enables daisy-chain connectivity
Mechanical Performance:
- Cable Retention: 1500 N (cable dependant)
- Corrosion Resistance: 500h salt spray
- Crush Resistance: 6700 N
- Durability: 3000 matings min
- Free Fall Resistance: 500 falls from 1.2m
- Shock Resistance: 4000 bumps @ 40g acc
- Vibration: 10-500Hz, 3d, 0.75mm amp @ 10g acc
Material Specification:
- Material: Aluminium
- Shell Finish: Anodized or Zinc-Nickel
- Shell Color: Black or Olive
- Grip & Boot: Silicone
- Optional: Bronze or Stainless Steel
Contact us for ordering information and technical support.
