Junior
- Channel Count: 1, 2 or 4 channels
- Fiber Type: Single or Multimode
- Optical Performance: MIL-DTL-83526
- Optional: Angled shell 90°
- Optional: M83526 certified range
- Optional: Stainless Steel

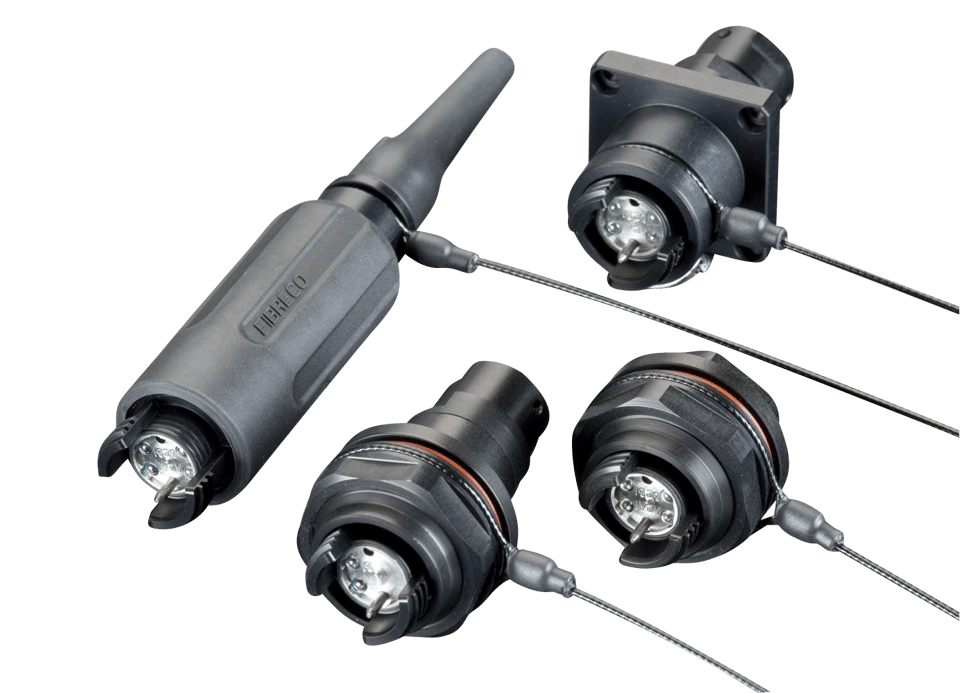

Expanded beam connectors from Cinch Fibreco have been designed for use in the most demanding harsh environment applications including military tactical communications, outside broadcast, petrochemical plant, mining, and offshore systems. The increased size of the optical beam reduces susceptibility of the interconnect to contamination and allows for easy cleaning/maintenance in the field.
Hexatronic has extensive experience and excellent knowledge in the use of junior-sized expanded beam connectors from Cinch Fibreco. Junior connectors are terminated using an epoxy-polish ferrule termination process with standard fiber optic termination tools and equipment. The terminated ferrules are simply inserted into the expanded beam housing and fixed in place via a spring and cover-plate. Junior-size connectors with 2 or 4 optical channels, in singlemode or multimode, are compatible with other brand of connectors such as Falcon, HMA and Pro Beam.

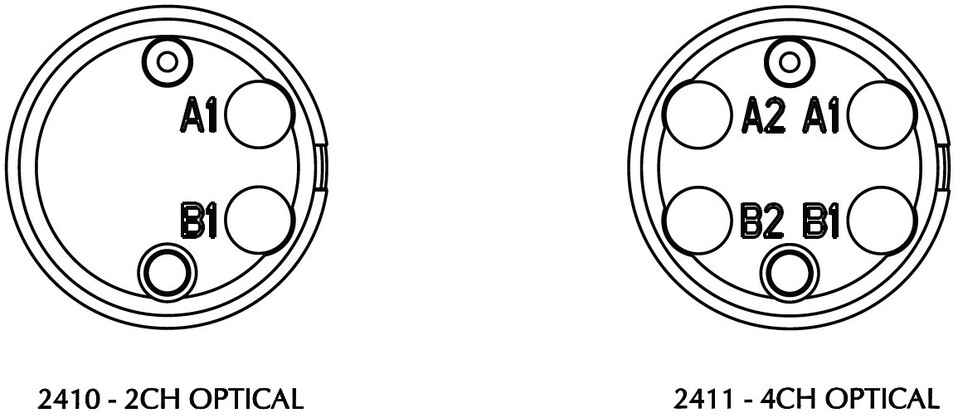

Fibreco Junior connectors with 2 or 4 channels are compatible to:
- Falcon, Procon, HMA, Pro Beam, TacBeam
- FOKS 4 (only 4ch Single- or Multimode)
Optical performance in line with MIL-DTL-83526
FIBRECO
Hermaphroditic design, enables daisy-chain connectivity
Mechanical Performance:
- Cable Retention: 1500 N (cable dependant)
- Corrosion Resistance: 500h salt spray
- Crush Resistance: 6700 N
- Durability: 3000 matings min
- Free Fall Resistance: 500 falls from 1.2m
- Shock Resistance: 4000 bumps @ 40g acc
- Vibration: 20-500Hz, 3d, 0.75mm amp @ 10g acc
Material Specification:
- Material: Aluminium
- Shell Finish: Anodized or Zinc-Nickel
- Shell Color: Black or Olive
- Grip & Boot: Silicone
- Optional: Bronze or Stainless Steel
Contact us for ordering information and technical support.
