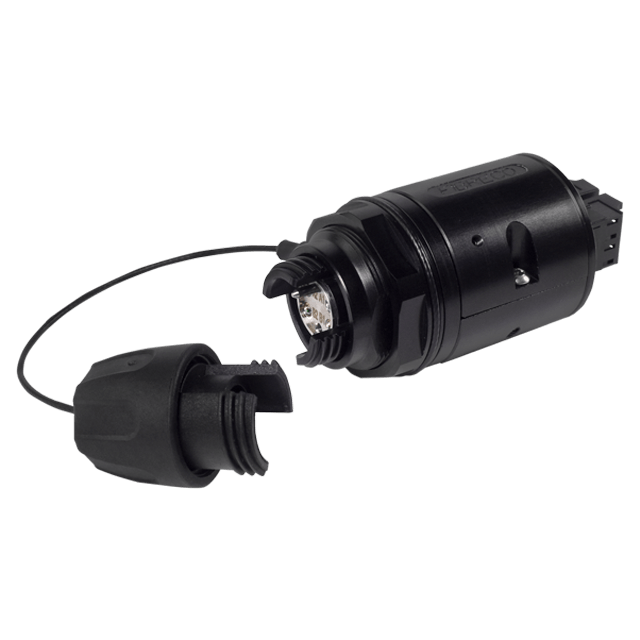

Junior Adapter
- Channel Count: 2 or 4 channels
- Fiber Type: Single or Multimode
- Optical Performance: MIL-DTL-83526
- Optional: Stainless Steel
JCON expanded beam adapters are engineered for reliable performance in the most demanding applications and environments.
- Ground-based tactical communications
- Outside Broadcast / Consoles
- Industrial environments
- Mining
- Marine and offshore systems
JCON adapters feature a M83526 compliant fiber optic interface, along with rear adapter plate for standard commercial connectors allowing easy use with readily available patchcords.
The expanded beam ferrule-to-lens alignment utilizes Cinch-Fibreco patented optical technology, ensuring optimal signal integrity and minimizing maintenance.
If the cabling is damaged during use, the adapter’s design enables fast replacement with standard commercial patchcords - no termination required.
Optical performance in line with MIL-DTL-83526
FIBRECO
Bulkhead connector with D-hole panel cut-out
Mechanical Performance:
- Durability (End A): 1000 matings min
- Free Fall Resistance: 500 drops from 1.2m
- Leak Test: Simulation up to 15m for 15s
- Tensile Load (End B LC): 40 N for 120s
- Thermal Shock: -40°C to +85°C
Material Specification:
- Material: Aluminium
- Shell Finish: Anodized or Zinc-Nickel
- Shell Color: Black or Olive
- Optional: Stainless Steel
Contact us for ordering information and technical support.
Technical Information
