TOL4019028+AH
Viper mikrokabel
GNHL 2-432 fiber G657A1 S12
- Upp till 432 fibrer
- Supersmal design
- Utmärkt installationsprestanda
- Unik design med robusta innerrör som inte kinkar
- Temperaturområde från -45 till + 70 ° C
- Utmärkt böjprestanda, ≥70 mm
- Lätt att förbereda och identifiera fibrer
- Ultralåg dämpning i kabeln

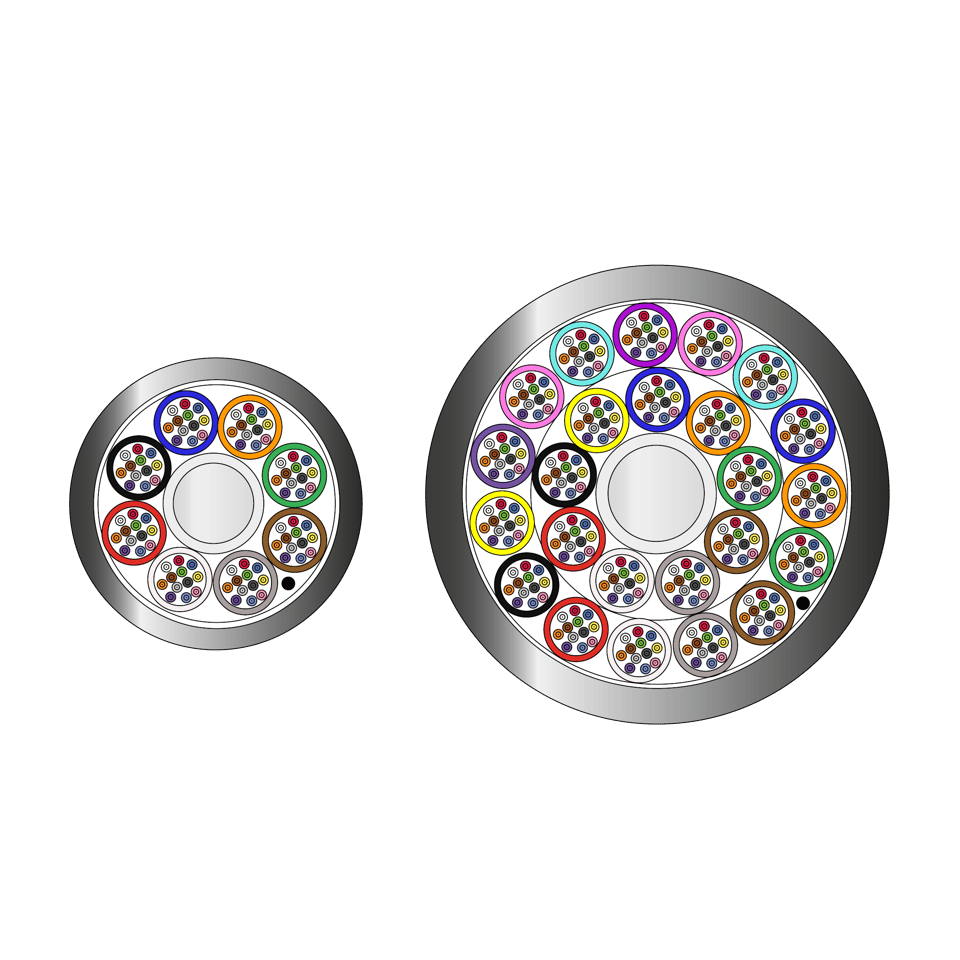

För illustration. Färgkod på produkten kan variera från ovanstående bild.
1. Primärbelagd fiber: Glas, akrylat
2. Löst rör: PA
3. Central dragavlastning: Glasfiberarmerad plast, PE
4. Dragsnöre
5. Omslag: Vattenblockerande garn
6. Mantel: Polyeten, halogenfri
Svarta fyllnadstrådar kan ersätta tomma rör.
Temperature, Operation [°C]
-45 till +70
Temperature, Handling [°C]
-15 till +50
Temperature, Storage [°C]
-45 till +70
Fiber Type
G657A1
Attenuation @Wavelength [nm]
1310/1383/1550
Attenuation Typical
0.32/0.32/0.18
Attenuation Max
0.38/0.38/0.23
Color
Svart mantel
Conformance
Fiberparametrar och fibertester enligt IEC serie 60793-2 och 60793-1.
Mekaniska tester och miljötester enligt familjespecifikation IEC 60794-5-10.
Teststandard, förutsättningar och krav:
- Temperatur i drift: IEC 60794-1-22 Method F1; max dämpning 0.05dB/km*
- Temperatur lagring: IEC 60794-1-22 Method F1; max dämpning 0.15dB/km* reversibel
- Åldring: IEC 60794-1-22, Method F9; 168h@85°C,+2 cykler, ingen dämpningsökning efter test
- Längsvattenblockering: IEC 60794-1-2, Method F5C, 3m provbit, 1m vatten, inget läckage efter 24 timmar
- Böjradie: IEC 60794-1-21, Method E11B; 4 varv, 3 cykler, max dämpning 0.05dB*
- Dragkraft installation: IEC 60794-1-21, Method E1; max fibertöjning 0.6%, reversibel dämpning
- Tryck: IEC 60794-1-21, Method E3; 1 minut last, 100mm platta, ingen dämpningsökning efter test
- Slag: IEC 60794-1-21, Method E4; 3 ställen, max dämpning 0.1dB* efter test
* Alla dämpningsmätningar utförs @ 1550nm

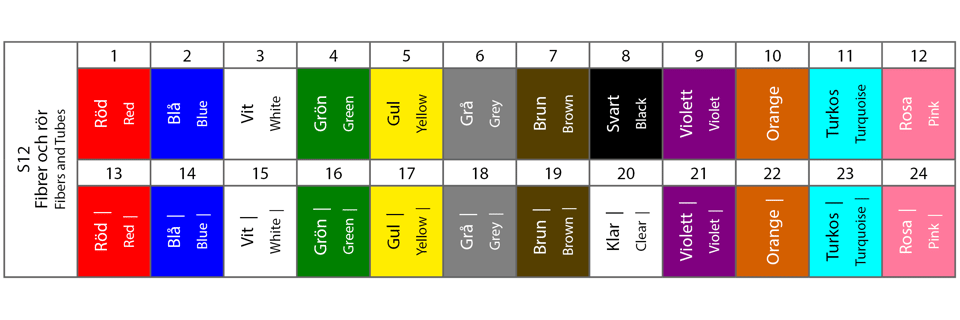

Color code
S12
Water Blocking
Längsgående vattenblockering enligt IEC 60794-1-2-F5C
Average Attenuation [dB/km]
0.33/0.33/0.21
Marking
Exempel på mantelmärkningm, 1 ggr/m:
“HEXATRONIC A35 Viper yymmddhh TOL4019028/432AH GNHL-U-CDGNRV 432/T12 G657A1 S12 xxxxx m”
där yymmddhh = år, månad, dag och timme för tillverkningen, xxxxx=löpande metermärkning
Installation Notes
Typisk installationsprestanda:
- Mikrorör ID 8-10 mm, kabel YD ≤6,7 mm: 2000 m
- Mikrorör ID 12 mm, kabel YD ≤8,0 mm: 2000 m
- Mikrorör ID 15-16 mm, kabel YD <11 mm: 2000 m, kabel YD 11-12 mm: 1500 m
Installationsprestanda verifierad på Hexatronic testbana, enligt IEC 60794. Installationsprestanda påverkas av den installerade banan, miljöförhållanden, installationsutrustning etc, och den faktiska prestandan kan därför avvika från ovan angivna värden.
Om kabeln installeras genom blåsning ska temperaturen vara -15 till +40 ° C. Kabeln får inte förvaras i direkt solljus. Solen kan värma upp kabeln över den tillåtna temperaturgränsen.
Ordering Info
Leveranslängder: 2, 4, 8 km
Teknisk information
Sortera efter
Artikelnamn
Lägg till i lista
Mer
- Product: GNHL 2/T2 G657A1 S12 (ID: TOL4019033/2AH) | E-No.: 4988710 | Color: Svart | No. of Fibers: 2 | Layout: 1x2 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 430 | Crush [N/100 mm]: 1000 | Diameter: 4.2 | Weight [kg/km]: 11.5 | Length [m]: 4000/K7, 8000/K8
- Product: GNHL 2/T2 G657A1 S12 T2000 (ID: H4019033/2AH-3) | E-No.: 4988717 | Color: Svart | No. of Fibers: 2 | Layout: 1x2 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 430 | Crush [N/100 mm]: 1000 | Diameter: 4.2 | Weight [kg/km]: 11.5 | Length [m]: 2000/K7
- Product: GNHL 2/T2 G657A1 S12 T4000 (ID: H4019033/2AH-4) | E-No.: 4988718 | Color: Svart | No. of Fibers: 2 | Layout: 1x2 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 430 | Crush [N/100 mm]: 1000 | Diameter: 4.2 | Weight [kg/km]: 11.5 | Length [m]: 4000/K7
- Product: GNHL 2/T2 G657A1 S12 T8000 (ID: H4019033/2AH14) | E-No.: 4988719 | Color: Svart | No. of Fibers: 2 | Layout: 1x2 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 430 | Crush [N/100 mm]: 1000 | Diameter: 4.2 | Weight [kg/km]: 11.5 | Length [m]: 8000/K8
- Product: GNHL 4/T4 G657A1 S12 (ID: TOL4019033/4AH) | E-No.: 4988720 | Color: Svart | No. of Fibers: 4 | Layout: 1x4 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 430 | Crush [N/100 mm]: 1000 | Diameter: 4.2 | Weight [kg/km]: 11.5 | Length [m]: 4000/K7, 8000/K8
- Product: GNHL 4/T4 G657A1 S12 T4000 (ID: H4019033/4AH-4) | E-No.: 4988728 | Color: Svart | No. of Fibers: 4 | Layout: 1x4 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 430 | Crush [N/100 mm]: 1000 | Diameter: 4.2 | Weight [kg/km]: 11.5 | Length [m]: 4000/K7
- Product: GNHL 4/T4 G657A1 S12 T8000 (ID: H4019033/4AH14) | E-No.: 4988729 | Color: Svart | No. of Fibers: 4 | Layout: 1x4 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 430 | Crush [N/100 mm]: 1000 | Diameter: 4.2 | Weight [kg/km]: 11.5 | Length [m]: 8000/K8
- Product: GNHL 8/T4 G657A1 S12 (ID: TOL4019033/8AH) | E-No.: 4988730 | Color: Svart | No. of Fibers: 8 | Layout: 2x4 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 430 | Crush [N/100 mm]: 1000 | Diameter: 4.2 | Weight [kg/km]: 11.5 | Length [m]: 4000/K7, 8000/K8
- Product: GNHL 8/T4 G657A1 S12 T2000 (ID: H4019033/8AH-3) | E-No.: 4988737 | Color: Svart | No. of Fibers: 8 | Layout: 2x4 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 430 | Crush [N/100 mm]: 1000 | Diameter: 4.2 | Weight [kg/km]: 11.5 | Length [m]: 2000/K7
- Product: GNHL 8/T4 G657A1 S12 T4000 (ID: H4019033/8AH-4) | E-No.: 4988738 | Color: Svart | No. of Fibers: 8 | Layout: 2x4 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 430 | Crush [N/100 mm]: 1000 | Diameter: 4.2 | Weight [kg/km]: 11.5 | Length [m]: 4000/K7
- Product: GNHL 4/T4 G657A1 S12 T2000 (ID: H4019033/4AH-3) | E-No.: 4988727 | Color: Svart | No. of Fibers: 4 | Layout: 1x4 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 430 | Crush [N/100 mm]: 1000 | Diameter: 4.2 | Weight [kg/km]: 11.5 | Length [m]: 2000/K7
- Product: GNHL 12/T4 G657A1 S12 (ID: TOL4019033/12AH) | E-No.: 4988740 | Color: Svart | No. of Fibers: 12 | Layout: 3x4 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 430 | Crush [N/100 mm]: 1000 | Diameter: 4.2 | Weight [kg/km]: 11.5 | Length [m]: 4000/K7, 8000/K8
- Product: GNHL 12/T4 G657A1 S12 T2000 (ID: H4019033/12AH-3) | E-No.: 4988747 | Color: Svart | No. of Fibers: 12 | Layout: 3x4 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 430 | Crush [N/100 mm]: 1000 | Diameter: 4.2 | Weight [kg/km]: 11.5 | Length [m]: 2000/K7
- Product: GNHL 24/T4 G657A1 S12 (ID: TOL4019033/24AH) | E-No.: 4988750 | Color: Svart | No. of Fibers: 24 | Layout: 6x4 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 430 | Crush [N/100 mm]: 1000 | Diameter: 4.2 | Weight [kg/km]: 11.5 | Length [m]: 8000/K8, 4000/K7
- Product: GNHL 24/T4 G657A1 S12 T2000 (ID: H4019033/24AH-3) | E-No.: 4988757 | Color: Svart | No. of Fibers: 24 | Layout: 6x4 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 430 | Crush [N/100 mm]: 1000 | Diameter: 4.2 | Weight [kg/km]: 11.5 | Length [m]: 2000/K7
- Product: GNHL 24/T4 G657A1 S12 T4000 (ID: H4019033/24AH-4) | E-No.: 4988758 | Color: Svart | No. of Fibers: 24 | Layout: 6x4 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 430 | Crush [N/100 mm]: 1000 | Diameter: 4.2 | Weight [kg/km]: 11.5 | Length [m]: 4000/K7
- Product: GNHL 12/T12 G657A1 S12 (ID: TOL4019028/12AH) | E-No.: 4988220 | Color: Svart | No. of Fibers: 12 | Layout: 1x12 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 750 | Crush [N/100 mm]: 2000 | Impact [J]: 2 | Diameter: 5.7 | Weight [kg/km]: 28 | Length [m]: 4000/K8, 8000/K10
- Product: GNHL 12/T12 G657A1 S12 T2000 (ID: H4019028/12AH-3) | E-No.: 4988227 | Color: Svart | No. of Fibers: 12 | Layout: 1x12 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 750 | Crush [N/100 mm]: 2000 | Impact [J]: 2 | Diameter: 5.7 | Weight [kg/km]: 28 | Length [m]: 2000/K7
- Product: GNHL 12/T4 G657A1 S12 T4000 (ID: H4019033/12AH-4) | E-No.: 4988748 | Color: Svart | No. of Fibers: 12 | Layout: 3x4 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 430 | Crush [N/100 mm]: 1000 | Diameter: 4.2 | Weight [kg/km]: 11.5 | Length [m]: 4000/K7
- Product: GNHL 12/T12 G657A1 S12 T4000 (ID: H4019028/12AH-4) | E-No.: 4988228 | Color: Svart | No. of Fibers: 12 | Layout: 1x12 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 750 | Crush [N/100 mm]: 2000 | Impact [J]: 2 | Diameter: 5.7 | Weight [kg/km]: 28 | Length [m]: 4000/K8
- Product: GNHL 24/T12 G657A1 S12 (ID: TOL4019028/24AH) | E-No.: 4988240 | Color: Svart | No. of Fibers: 24 | Layout: 2x12 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 825 | Crush [N/100 mm]: 2000 | Impact [J]: 2 | Diameter: 5.7 | Weight [kg/km]: 28 | Length [m]: 8000/K10, 4000/K8
- Product: GNHL 24/T12 G657A1 S12 T2000 (ID: H4019028/24AH-3) | E-No.: 4988247 | Color: Svart | No. of Fibers: 24 | Layout: 2x12 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 825 | Crush [N/100 mm]: 2000 | Impact [J]: 2 | Diameter: 5.7 | Weight [kg/km]: 28 | Length [m]: 2000/K7
- Product: GNHL 24/T12 G657A1 S12 T4000 (ID: H4019028/24AH-4) | E-No.: 4988248 | Color: Svart | No. of Fibers: 24 | Layout: 2x12 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 825 | Crush [N/100 mm]: 2000 | Impact [J]: 2 | Diameter: 5.7 | Weight [kg/km]: 28 | Length [m]: 4000/K8
- Product: GNHL 48/T12 G657A1 S12 (ID: TOL4019028/48AH) | E-No.: 4988250 | Color: Svart | No. of Fibers: 48 | Layout: 4x12 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 950 | Crush [N/100 mm]: 2000 | Impact [J]: 2 | Diameter: 5.7 | Weight [kg/km]: 28 | Length [m]: 8000/K10, 4000/K8
- Product: GNHL 48/T12 G657A1 S12 T2000 (ID: H4019028/48AH-3) | E-No.: 4988257 | Color: Svart | No. of Fibers: 48 | Layout: 4x12 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 950 | Crush [N/100 mm]: 2000 | Impact [J]: 2 | Diameter: 5.7 | Weight [kg/km]: 28 | Length [m]: 2000/K7
- Product: GNHL 48/T12 G657A1 S12 T4000 (ID: H4019028/48AH-4) | E-No.: 4988258 | Color: Svart | No. of Fibers: 48 | Layout: 4x12 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 950 | Crush [N/100 mm]: 2000 | Impact [J]: 2 | Diameter: 5.7 | Weight [kg/km]: 28 | Length [m]: 4000/K8
- Product: GNHL 72/T12 G657A1 S12 (ID: TOL4019028/72AH) | E-No.: 4988260 | Color: Svart | No. of Fibers: 72 | Layout: 6x12 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 1100 | Crush [N/100 mm]: 2000 | Impact [J]: 2 | Diameter: 5.7 | Weight [kg/km]: 28 | Length [m]: 4000/K8, 8000/K10
- Product: GNHL 72/T12 G657A1 S12 T2000 (ID: H4019028/72AH-3) | E-No.: 4988267 | Color: Svart | No. of Fibers: 72 | Layout: 6x12 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 1100 | Crush [N/100 mm]: 2000 | Impact [J]: 2 | Diameter: 5.7 | Weight [kg/km]: 28 | Length [m]: 2000/K7
- Product: GNHL 72/T12 G657A1 S12 T4000 (ID: H4019028/72AH-4) | E-No.: 4988268 | Color: Svart | No. of Fibers: 72 | Layout: 6x12 | Bend Radius [mm]: 75 | Tensile Force, Installation [N]: 1100 | Crush [N/100 mm]: 2000 | Impact [J]: 2 | Diameter: 5.7 | Weight [kg/km]: 28 | Length [m]: 4000/K8
- Product: GNHL 96/T12 G657A1 S12 (ID: TOL4019032/96AH) | E-No.: 4988770 | Color: Svart | No. of Fibers: 96 | Layout: 8x12 | Bend Radius [mm]: 80 | Tensile Force, Installation [N]: 1200 | Crush [N/100 mm]: 1000 | Impact [J]: 3 | Diameter: 6.1 | Weight [kg/km]: 28 | Length [m]: 8000/K10, 4000/K8
- Product: GNHL 96/T12 G657A1 S12 T2000 (ID: H4019032/96AH-3) | E-No.: 4988777 | Color: Svart | No. of Fibers: 96 | Layout: 8x12 | Bend Radius [mm]: 80 | Tensile Force, Installation [N]: 1200 | Crush [N/100 mm]: 1000 | Impact [J]: 3 | Diameter: 6.1 | Weight [kg/km]: 28 | Length [m]: 2000/K7
- Product: GNHL 96/T12 G657A1 S12 T4000 (ID: H4019032/96AH-4) | E-No.: 4988778 | Color: Svart | No. of Fibers: 96 | Layout: 8x12 | Bend Radius [mm]: 80 | Tensile Force, Installation [N]: 1200 | Crush [N/100 mm]: 1000 | Impact [J]: 3 | Diameter: 6.1 | Weight [kg/km]: 28 | Length [m]: 4000/K8
- Product: GNHL 144/T24 G657A1 S12 (ID: TOL4019032/144AH) | E-No.: 4988650 | Color: Svart | No. of Fibers: 144 | Layout: 6x24 | Bend Radius [mm]: 70 | Tensile Force, Installation [N]: 1600 | Crush [N/100 mm]: 2000 | Impact [J]: 5 | Diameter: 6.7 | Weight [kg/km]: 35 | Length [m]: 8000/K12, 4000/K10
- Product: GNHL 144/T24 G657A1 S12 T2000 (ID: H4019032/144AH-3) | E-No.: 4988657 | Color: Svart | No. of Fibers: 144 | Layout: 6x24 | Bend Radius [mm]: 70 | Tensile Force, Installation [N]: 1600 | Crush [N/100 mm]: 2000 | Impact [J]: 5 | Diameter: 6.7 | Weight [kg/km]: 35 | Length [m]: 2000/K8
- Product: GNHL 144/T24 G657A1 S12 T4000 (ID: H4019032/144AH-4) | E-No.: 4988658 | Color: Svart | No. of Fibers: 144 | Layout: 6x24 | Bend Radius [mm]: 70 | Tensile Force, Installation [N]: 1600 | Crush [N/100 mm]: 2000 | Impact [J]: 5 | Diameter: 6.7 | Weight [kg/km]: 35 | Length [m]: 4000/K10
- Product: GNHL 144/T12 G657A1 S12 (ID: TOL4019053/144AH) | Color: Svart | No. of Fibers: 144 | Layout: 12x12 | Tensile Force, Installation [N]: 2000 | Crush [N/100 mm]: 2000 | Diameter: 7.9 | Weight [kg/km]: 50 | Length [m]: 2000/K8, 4000/K10, 6000, 8000
- Product: GNHL 192/T24 G657A1 S12 (ID: TOL4019028/192AH) | E-No.: 4988500 | Color: Svart | No. of Fibers: 192 | Layout: 8x24 | Bend Radius [mm]: 80 | Tensile Force, Installation [N]: 2500 | Crush [N/100 mm]: 2000 | Impact [J]: 3 | Diameter: 7.9 | Weight [kg/km]: 47 | Length [m]: 2000/K8, 9600/K12
- Product: GNHL 192/T24 G657A1 S12 T2000 (ID: H4019028/192AH-3) | E-No.: 4988507 | Color: Svart | No. of Fibers: 192 | Layout: 8x24 | Bend Radius [mm]: 80 | Tensile Force, Installation [N]: 2500 | Crush [N/100 mm]: 2000 | Impact [J]: 3 | Diameter: 7.9 | Weight [kg/km]: 60 | Length [m]: 2000/K8
- Product: GNHL 192/T24 G657A1 S12 T4000 (ID: H4019028/192AH-4) | E-No.: 4988508 | Color: Svart | No. of Fibers: 192 | Layout: 8x24 | Bend Radius [mm]: 80 | Tensile Force, Installation [N]: 2500 | Crush [N/100 mm]: 2000 | Impact [J]: 3 | Diameter: 7.9 | Weight [kg/km]: 60 | Length [m]: 4000/K10
- Product: GNHL 288 T/12 G657A1 S12 (ID: TOL4019039/288AH) | E-No.: 4700800 | Color: Svart | No. of Fibers: 288 | Layout: 24x12 | Bend Radius [mm]: 80 | Tensile Force, Installation [N]: 3000 | Crush [N/100 mm]: 2000 | Impact [J]: 3 | Diameter: 10.3 | Weight [kg/km]: 86 | Length [m]: 2000/K10, 4000/K12
- Product: GNHL 432/T12 G657A1 S12 (ID: TOL4019028/432AH) | E-No.: 4700820 | Color: Svart | No. of Fibers: 432 | Layout: 36x12 | Bend Radius [mm]: 175 | Tensile Force, Installation [N]: 1800 | Crush [N/100 mm]: 2000 | Diameter: 11.7 | Weight [kg/km]: 98
