TOL4019029+AH

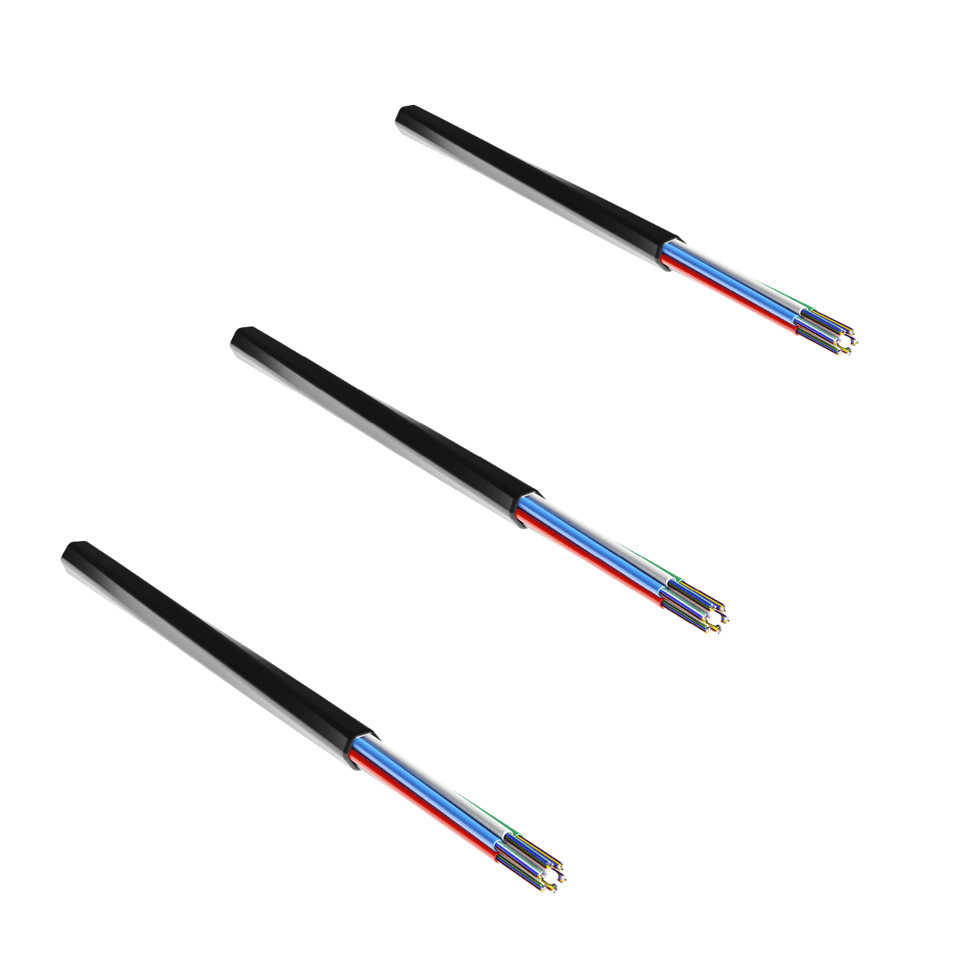

Viper Micro Cable - Aerial Applications
GNHL 12-96 fibers G657A1 S12
- Optimized for aerial duct installation
- Excellent installation performance
- Bend resistant G657A1 fibers
- Unique design with robust inner tubes that do not kink
- Temperature range from -40 to +70°C
- Easy to prepare and identify fibers
- Slim design for microducts down to 8mm
- Halogen-free
- Up to 96 fibers

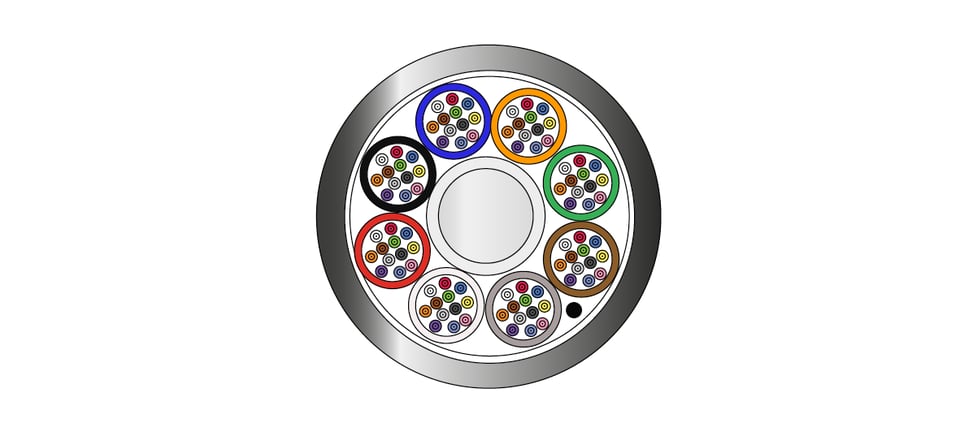

1. Primary coated fiber: Silica, acrylate
2. Loose tube: PA
3. Central strength member: Glass fiber reinforced plastic, PE
4. Slit up yarn: Aramide yarn
5. Wrapping: Water blocking yarns
6. Sheath: Polyethylene, halogen-free
Black fillers can replace empty white tubes.
Temperature, Operation [°C]
-40 to +70
Temperature, Handling [°C]
-15 to +50
Temperature, Storage [°C]
40 to +70
Fiber Type
G657A1
Attenuation @Wavelength [nm]
1310/1383/1550
Attenuation Typical
0.32/0.32/0.18
Attenuation Max
0.38/0.38/0.23
Color
Black Sheath
Conformance
Longitudinal water blocking according to IEC 60794-1-2-F5C.
Mechanical and environmental tests in accordance with IEC 60794-5-10.
Fiber parameters and tests according to the IEC series 60793-2 and 60793-1.
Color code
S12
Water Blocking
Longitudinal water blocking according to IEC 60794-1-2-F5C
Average Attenuation [dB/km]
0.33/0.33/0.21
Marking
Example of jacket marking, 1 time/meter:
"HEXATRONIC A35 Viper Aerial yymmddhh TOL4019029/96AH GNHL-U-CDGNRV 96/T12 G657A1 S12 xxxxx M"
where yymmddhh = year, month, day and hour of manufacture, xxxxx=running meter marking.
Installation Notes
Typical installation performance:
- Ducts ID 8-10 mm, cable OD ≤6.7 mm: 2000 m
Installation performance verified on Hexatronic test track, according to IEC 60794. Installation performance is affected by the installed path, environmental conditions, installation equipment etc and actual performance may therefore deviate from the above specified values.
The cable should be installed at a temperature between -15 to +40°C. The cable shall not be stored in direct sunlight. The sun may heat up the cable over the permitted temperature limit.
Ordering Info
Supplied lengths: 2, 4, 8 km
Technical Information
Sort by
Item name
Add to list
More
- Product: GNHL 12/T12 G657A1 S12 Aerial (ID: TOL4019029/12AH) | Color: Black | No. of Fibers: 12 | Layout: 1x12 | Bend Radius [mm]: 23 | Tensile Force, Installation [N]: 700 | Crush [N/100 mm]: 2000 | Diameter: 5.7 | Weight [kg/km]: 28 | Length [m]: 8000/K10, 4000/K8
- Product: GNHL 24/T12 G657A1 S12 Aerial (ID: TOL4019029/24AH) | Color: Black | No. of Fibers: 24 | Layout: 2x12 | Bend Radius [mm]: 23 | Tensile Force, Installation [N]: 700 | Crush [N/100 mm]: 2000 | Diameter: 5.7 | Weight [kg/km]: 28 | Length [m]: 8000/K10, 4000/K8
- Product: GNHL 48/T12 G657A1 S12 Aerial (ID: TOL4019029/48AH) | Color: Black | No. of Fibers: 48 | Layout: 4x12 | Bend Radius [mm]: 23 | Tensile Force, Installation [N]: 700 | Crush [N/100 mm]: 2000 | Diameter: 5.7 | Weight [kg/km]: 28 | Length [m]: 8000/K10, 4000/K8
- Product: GNHL 72/T12 G657A1 S12 Aerial (ID: TOL4019029/72AH) | Color: Black | No. of Fibers: 72 | Layout: 6x12 | Bend Radius [mm]: 23 | Tensile Force, Installation [N]: 700 | Crush [N/100 mm]: 2000 | Diameter: 5.7 | Weight [kg/km]: 28 | Length [m]: 8000/K10, 4000/K8
- Product: GNHL 96/T12 G657A1 S12 Aerial (ID: TOL4019029/96AH) | Color: Black | No. of Fibers: 96 | Layout: 8x12 | Bend Radius [mm]: 23 | Tensile Force, Installation [N]: 700 | Crush [N/100 mm]: 2000 | Diameter: 6.7 | Weight [kg/km]: 39 | Length [m]: 4000/K10, 8000/K12
