TOL4043005+C

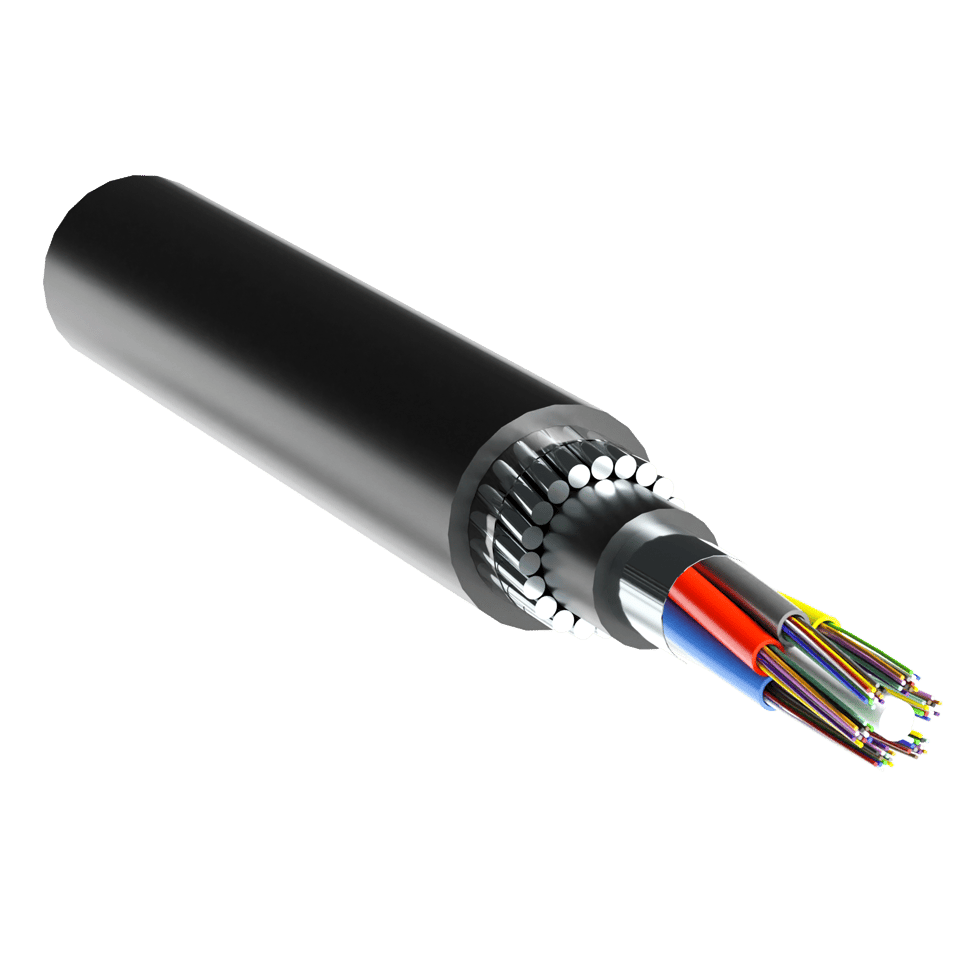

Underwater Cable - Loose Tube
GRHALTL 12-192 G.657.A1 TIA598
- For lakes and rivers
- Water depth down to 200 m
- Compact design, down to 20 mm in diameter
- 12 to 192 fibers, G657.A1
- Steel wire reinforcement
- Water blocking Al-foil
TIA 598 Color Code Chart
Sort by
Item name
Add to list
More
- Product: GRHALTL 12 G.657.A1 (1x12f) (ID: TOL4043005/12C) | Color: Black | No. of Fibers: 12 | Layout: 1x12 | Bend Radius [mm]: 300 | Tensile Force, Installation [N]: 20000 | Tensile Force, Operation [N]: 10000 | Crush [N/100 mm]: 3500 During test
10000 After test | Impact [J]: 90 | Diameter: 20 | Weight [kg/km]: 780 | Weight in sea water [kg/km]: 470
- Product: GRHALTL 24 G.657.A1 (2x12f) (ID: TOL4043005/24C) | Color: Black | No. of Fibers: 24 | Layout: 2x12 | Bend Radius [mm]: 300 | Tensile Force, Installation [N]: 20000 | Tensile Force, Operation [N]: 10000 | Crush [N/100 mm]: 3500 During test
10000 After test | Impact [J]: 90 | Diameter: 20 | Weight [kg/km]: 780 | Weight in sea water [kg/km]: 470
- Product: GRHALTL 48 G.657.A1 (4x12f) (ID: TOL4043005/48C) | Color: Black | No. of Fibers: 48 | Layout: 4x12 | Bend Radius [mm]: 300 | Tensile Force, Installation [N]: 20000 | Tensile Force, Operation [N]: 10000 | Crush [N/100 mm]: 3500 During test
10000 After test | Impact [J]: 90 | Diameter: 20 | Weight [kg/km]: 780 | Weight in sea water [kg/km]: 470
- Product: GRHALTL 96 G.657.A1 (8x12f) (ID: TOL4043005/96C) | Color: Black | No. of Fibers: 96 | Layout: 8x12 | Bend Radius [mm]: 300 | Tensile Force, Installation [N]: 20000 | Tensile Force, Operation [N]: 10000 | Crush [N/100 mm]: 3500 During test
10000 After test | Impact [J]: 90 | Diameter: 20 | Weight [kg/km]: 780 | Weight in sea water [kg/km]: 470
- Product: GRHALTL 144 G.657.A1 (6x24f) (ID: TOL4043006/144C) | Color: Black | No. of Fibers: 144 | Layout: 6x24 | Bend Radius [mm]: 300 | Tensile Force, Installation [N]: 20000 | Tensile Force, Operation [N]: 10000 | Crush [N/100 mm]: 3000 During test
10000 After test | Impact [J]: 70 | Diameter: 20 | Weight [kg/km]: 780 | Weight in sea water [kg/km]: 470
- Product: GRHALTL 192 G.657.A1 (8x24f) (ID: TOL4043006/192C) | Color: Black | No. of Fibers: 192 | Layout: 8x24 | Bend Radius [mm]: 300 | Tensile Force, Installation [N]: 20000 | Tensile Force, Operation [N]: 10000 | Crush [N/100 mm]: 3000 During test
10000 After test | Impact [J]: 70 | Diameter: 20 | Weight [kg/km]: 780 | Weight in sea water [kg/km]: 470
